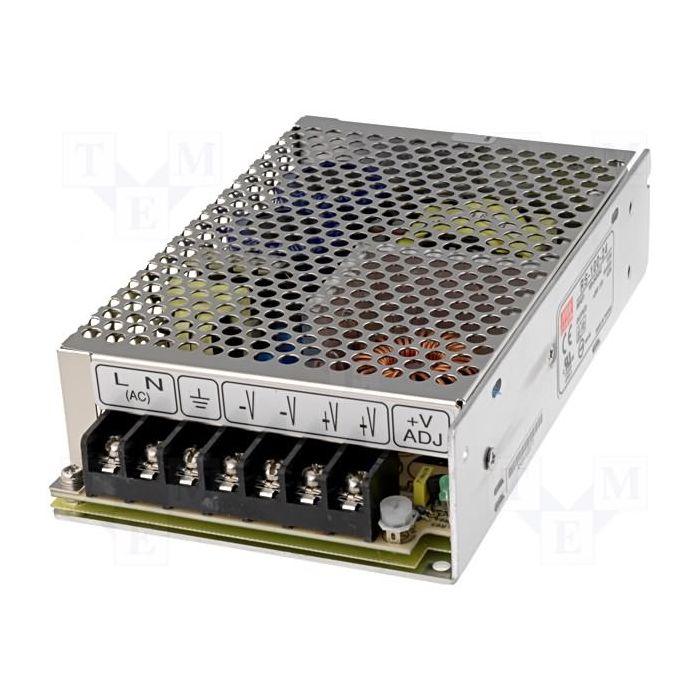

GESCHAKELDE VOEDING SINGLE OUTPUT 105W 15V/7.0A

Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
LED indicator for power on
100% full load burn-in test
All using 105C long life electrolytic capacitors
Withstand 300VAC surge input for 5 second
High operating temperature up to 70
Withstand 5G vibration test
High efficiency, long life and high reliability

OUTPUT:
DC VOLTAGE 12V
RATED CURRENT 7.0A
CURRENT RANGE 0 ~ 7.0A
RATED POWER 105W
RIPPLE & NOISE (max.) 120mVp-p
OUTPUT VOLTAGE ADJ. RANGE 14.25 ~ 16.5V
VOLTAGE TOLERANCE +/-1.0%

INPUT:
VOLTAGE RANGE 88 ~ 264VAC
FREQUENCY RANGE 47 ~ 63Hz

159*97*38mm (L*W*H)
