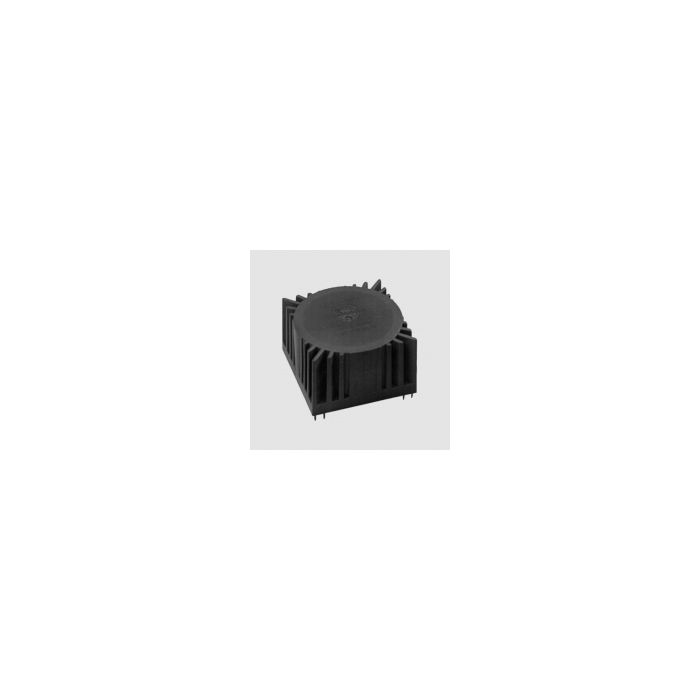

TRAFO RINGKERN PRINT 2 X 15V 2 X 832MA 25VA
€ 29,95
€ 24,75
Artikelnummer
RPT25215
- ArtikelnummerRPT25215
- MerkTALEMA
- Aantal 5+ € 26,95 € 22,27
Technical Specifications
Power: 25VA
Primary Voltage (50/60Hz): 2x115V AC
Secondary Voltage : 2 x 15V 2 x 832mA
Efficiency: 83%
No-Load Current, IoTyp.: 5,0mA
Test Voltage (Prim./Sec.): 4kV
Temperature Class: T60/E
Temperature Rise at Rated Load: 28K
Protection, 230V, Delayed Fuse: 160mA
Insulation Class: A(105°C); E(125°C)
Dimensions lxbxh: 60x60x37,5mm
Power: 25VA
Primary Voltage (50/60Hz): 2x115V AC
Secondary Voltage : 2 x 15V 2 x 832mA
Efficiency: 83%
No-Load Current, IoTyp.: 5,0mA
Test Voltage (Prim./Sec.): 4kV
Temperature Class: T60/E
Temperature Rise at Rated Load: 28K
Protection, 230V, Delayed Fuse: 160mA
Insulation Class: A(105°C); E(125°C)
Dimensions lxbxh: 60x60x37,5mm
