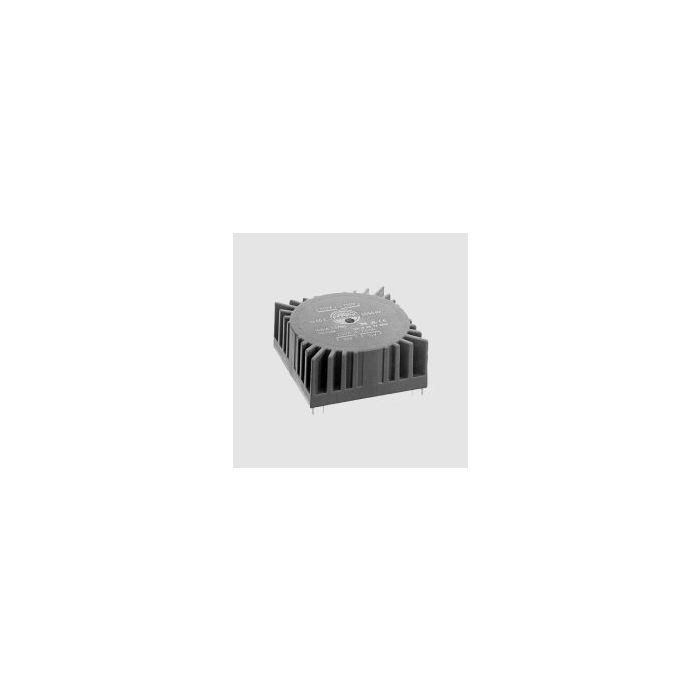

TRAFO RINGKERN PRINT 2 X 9V 2 X 833MA 15VA
€ 25,95
€ 21,45
Artikelnummer
RPT15209
- ArtikelnummerRPT15209
- MerkTALEMA
- Aantal 5+ € 23,35 € 19,30
Technical Specifications
Power: 10VA
Primary Voltage (50/60Hz): 2x115V AC
Secondary Voltage : 2 x 9V 2 x 833mA
Efficiency: 82%
No-Load Current, I0Typ.: 3,0mA
Test Voltage (Prim./Sec.): 4kV
Temperature Class: T60/E
Temperature Rise at Rated Load: 24K
Protection, 230V, Delayed Fuse: 80mA
Insulation Class: A(105°C); E(125°C)
Dimensions lxbxh: 60x60x26,3mm
Power: 10VA
Primary Voltage (50/60Hz): 2x115V AC
Secondary Voltage : 2 x 9V 2 x 833mA
Efficiency: 82%
No-Load Current, I0Typ.: 3,0mA
Test Voltage (Prim./Sec.): 4kV
Temperature Class: T60/E
Temperature Rise at Rated Load: 24K
Protection, 230V, Delayed Fuse: 80mA
Insulation Class: A(105°C); E(125°C)
Dimensions lxbxh: 60x60x26,3mm
