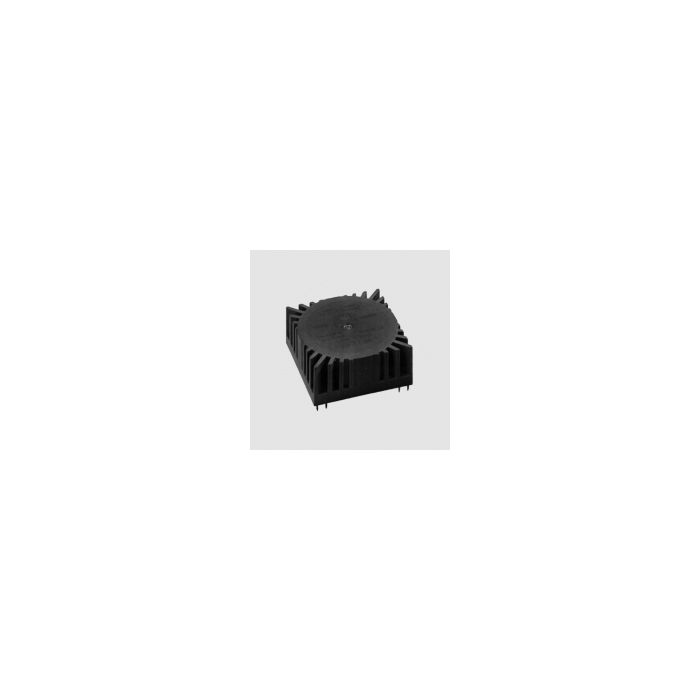

TRAFO RINGKERN PRINT 2 X 18V 2 X 270MA 10VA
€ 23,95
€ 19,79
Artikelnummer
RPT10218
- ArtikelnummerRPT10218
- MerkTALEMA
- Aantal 5+ € 21,55 € 17,81
Technical Specifications
Power: 10VA
Primary Voltage (50/60Hz): 2x115V AC
Secondary Voltage : 2 x 18V 2 x 270mA
Efficiency: 82%
No-Load Current, I0Typ.: 3,0mA
Test Voltage (Prim./Sec.): 4kV
Temperature Class: T60/E
Temperature Rise at Rated Load: 24K
Protection, 230V, Delayed Fuse: 80mA
Insulation Class: A(105°C); E(125°C)
Dimensions lxbxh: 55x55x26mm
Power: 10VA
Primary Voltage (50/60Hz): 2x115V AC
Secondary Voltage : 2 x 18V 2 x 270mA
Efficiency: 82%
No-Load Current, I0Typ.: 3,0mA
Test Voltage (Prim./Sec.): 4kV
Temperature Class: T60/E
Temperature Rise at Rated Load: 24K
Protection, 230V, Delayed Fuse: 80mA
Insulation Class: A(105°C); E(125°C)
Dimensions lxbxh: 55x55x26mm
