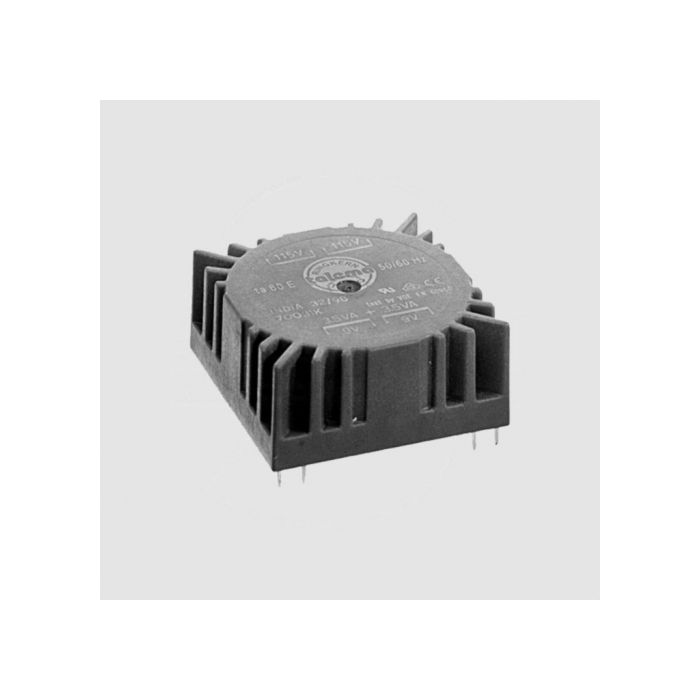

TRAFO RINGKERN PRINT 2 X 7V 2 X 500MA 7VA
€ 20,95
€ 17,31
Artikelnummer
RPT07207
- ArtikelnummerRPT07207
- MerkTALEMA
- Aantal 5+ € 18,84 € 15,57
Technical Specifications
Power: 7VA
Primary Voltage (50/60Hz): 2x115VAC
Secondary Voltage : 2 x 7V 2 x 500mA
Efficiency: 74%
No-Load Current, I0typ.: 3,0mA
Test Voltage (Prim./Sec.): 4kV
Temperature Class: T60/E
Temperature Rise at Rated Load: 25K
Protection, 230V, Delayed Fuse: 63mA
Insulation Class: A(105°C); E(125°C)
Dimensions lxbxh: 49,7x49,7x23,1mm
Power: 7VA
Primary Voltage (50/60Hz): 2x115VAC
Secondary Voltage : 2 x 7V 2 x 500mA
Efficiency: 74%
No-Load Current, I0typ.: 3,0mA
Test Voltage (Prim./Sec.): 4kV
Temperature Class: T60/E
Temperature Rise at Rated Load: 25K
Protection, 230V, Delayed Fuse: 63mA
Insulation Class: A(105°C); E(125°C)
Dimensions lxbxh: 49,7x49,7x23,1mm
