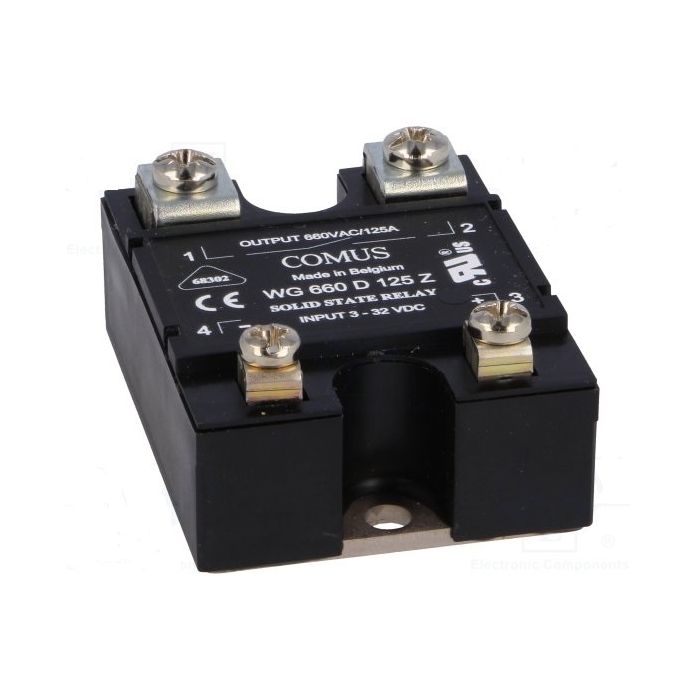

RELAIS SOLID STATE 24-660VAC 125A INPUT 3-32VDC
€ 104,96
€ 86,74
Artikelnummer
WG660D125Z
- ArtikelnummerWG660D125Z
- MerkCOMUS
- Aantal 5+ € 94,45 € 78,06
Technical Specifications
| • Isolation voltage 4kV • Operating temperature range -20...+80°C |
 |
| Part Nr. | UContr | ULoad | UDRM | IT | ITSM |
| [V DC] | [V AC] | [VPeak] | [A] | [A] | |
| WGA660-D25Z | 3...32 | 24...660 | 1600 | 25 | 230 |
| WGA660-D75Z | 3...32 | 24...660 | 1600 | 75 | 910 |
| WGA660-D125R | 3...32 | 48...660 | 1600 | 125 | 1590 |
| WGA660-D125Z | 3...32 | 24...660 | 1600 | 125 | 1590 |
| UContr = Control Voltage, ULoad = Load Voltage (Z = Zero-Voltage Switching, R = Instantaneous Switching), UDRM = Max. Off-State Output Voltage, IT = Max. Effective On-State Current, ITSM = Peak Forward Surge Current | |||||
