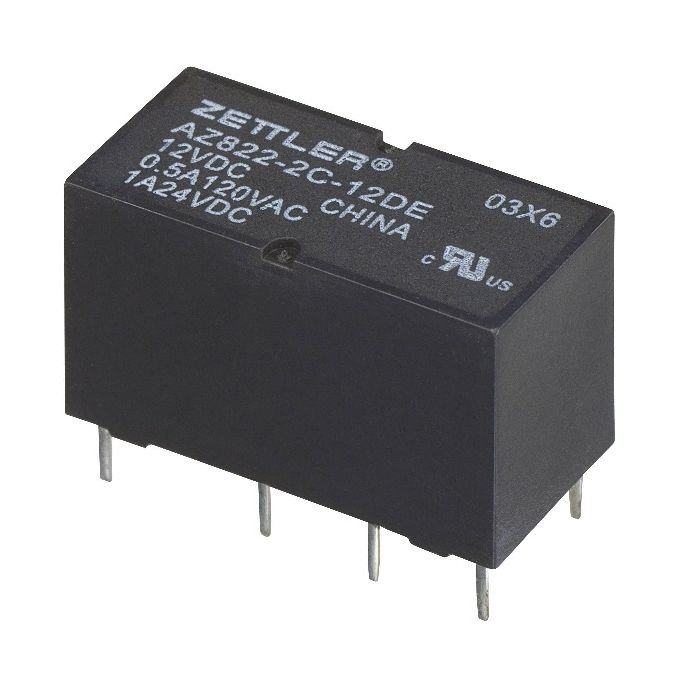

RELAIS PRINT 2XOM 12VDC 960 OHM SCHAKELVERMOGEN 2A/250VAC/220VDC
€ 4,50
€ 3,72
Artikelnummer
R012D2WAN
- ArtikelnummerR012D2WAN
- MerkZETTLER
- Aantal 10+ € 3,59 € 2,97
Features
| • Low profile for compact board spacing • Sensitive coil • Housing: 20x9,8x12mm • Live expectancy to 108 operations • Standard PC 2,54mm grid terminal spacing • Fits standard 16 pin IC socket • Epoxy sealed for automatic wave soldering and cleaning • Meets FCC Part 68.302 1500V lightning surge • Meets FCC Part 68.304 1000V dielectric |
 |
| Technical Specifications |
|
|
| Contact: | DPDT |
| Contact Material: | AgPd, Au Clad |
| Rated Current: | 2A |
| Max. Switching Voltage: | 250V AC / 220V DC |
| Max. Switching Power: | 125VA / 60W |
| Operate/Release Time: | 5/2ms |
| Testing Voltage (FCC) | |
| Coil/Contact: | 1000VRMS |
| Contact/Contact: | 1000VRMS |
| Open Contacs: | 1000VRMS |
| Lifetime | |
| Mechanical, Min.: | 1x108 Operations |
| Electrical, Min. (1A / 30V AC): | 5x105 Operations |
| Operating Temperature: | -55...+90°C |
| Max. Solder Temperature: | 270°C (5s) |
| Weight Approx.: | 4,5g |
