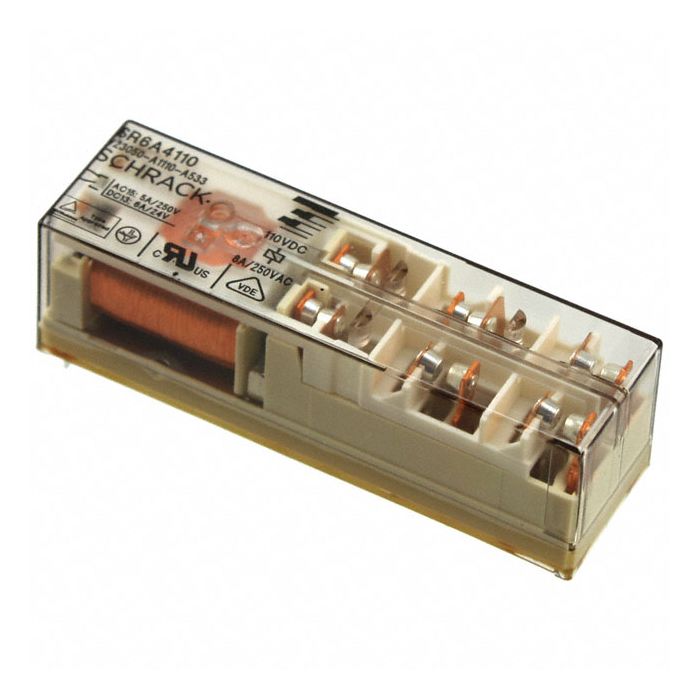

RELAIS 24VDC 3 X MAAK/3 X BREEK 8A
€ 29,95
€ 24,75
Artikelnummer
R024D3M3B
- ArtikelnummerR024D3M3B
- MerkTE CONNECTIVITY
- Aantal 5+ € 26,95 € 22,27
| Features |
| • Relay with forcibly guided contacts according to EN50205 • 6-pole safety relay • Category of protection RTIII (wash tight) |
 |
| Application |
| Emergency shut-off, press control, safety modules, elevator and escalator control |
|
| Technical Specifications |
|
|
| Contact | |
| R024D4M2B: | 4xNO+2xNC |
| R024D5M1B: | 5xNO+1xNC |
| R024D3M3B: | 3xNO+3xNC |
| Contact Material: | AgSnO2 |
| Rated Current: | 8A |
| Max. Switching Voltage: | 400V AC |
| Max. Switching Power: | 2000VA |
| Creepage/Clearance: | 5,5/5,5mm |
| Testing Voltage | |
| Coil/Contact: | 3000Vrms |
| Contact/Contact: | 3000Vrms |
| Opening Contact: | 1500Vrms |
| Lifetime | |
| Mechanical: | 10x106 Operations |
| Operating Temperature: | -25...+70°C |
| Weight Approx.: | 30g |
|
|
| Coil Data |
| Part Nr. | UN | UAn | UAb | PN | RN |
| [V DC] | [V] | [V] | mW | Ohm | |
| R024D4M2B | 24 | 18 | 2,4 | 1200 | 480 |
| R024D5M1B | 24 | 18 | 2,4 | 1200 | 480 |
| R024D3M3B | 24 | 18 | 2,4 | 1200 | 480 |
| UN = Rated Voltage, UAn = Operate Voltage, UAb = Release Voltage, PN = Rated Power, RN = Coil Resistance; All Specifications Measured at 23°C | |||||
