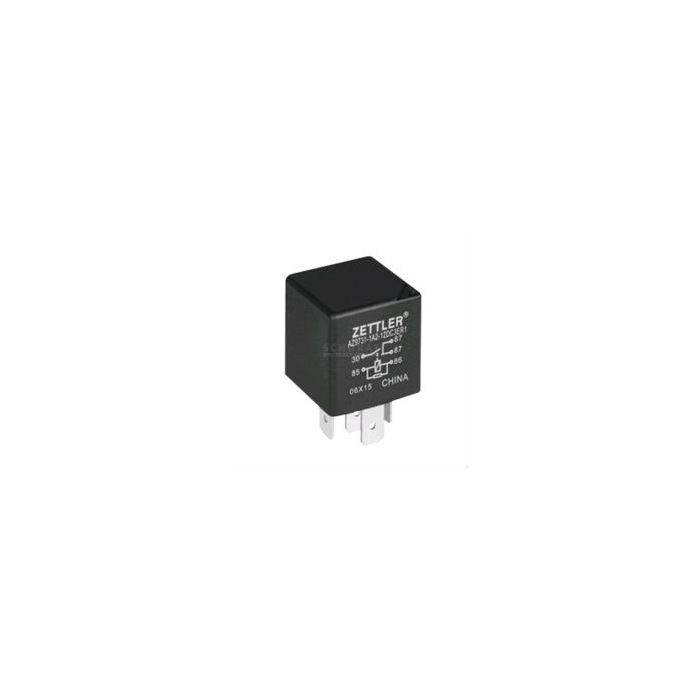

RELAIS 1 X MAAK 12VDC 40A 90 OHM
€ 4,95
€ 4,09
Artikelnummer
R012D1MS
- ArtikelnummerR012D1MS
- MerkZETTLER
- Aantal 5+ € 4,45 € 3,68
| Features |
| • 40A contact rating • High operating temperature 125°C • Quick connect terminals • Plastic dust cover with plastic mounting breacket • ISO/TS 16949, ISO14001 |
 |
| Technical Specifications |
|
|
| Contact: | |
| Contact Material: | AgSnO2 |
| Rated Current: | 40A |
| Max. Switching Voltage: | 28V DC |
| Max. Switching Power: | 560W |
| Operate/Release Time: | 7/5ms |
| Testing Voltage (FCC) | |
| Coil/Contact: | 750VRMS |
| Open Contacs: | 500VRMS |
| Lifetime | |
| Mechanical, Min.: | 1x107 Operations |
| Electrical, Min. (40A / 14V DC) | 1x105 Operations |
| Operating Temperature: | -40...+125°C |
| Weight Approx.: | 36g |
|
|
| Coil Data |
| Part Nr | UN | Umin. | Umax. | PN | RN |
| [V DC] | [V DC] | [V DC] | [mW] | [Ohm] | |
| R012D1MS | 12 | 7,8 | 15,6 | 1600 | 90 |
| UN = Rated Voltage, UMin. = Minimum Operating Voltage, UMax. = Maximum Operating Voltage, PN = Rated Power, RN = Coil Resistance; Rated Value ±10%; All Specifications Measured at 20°C | |||||
