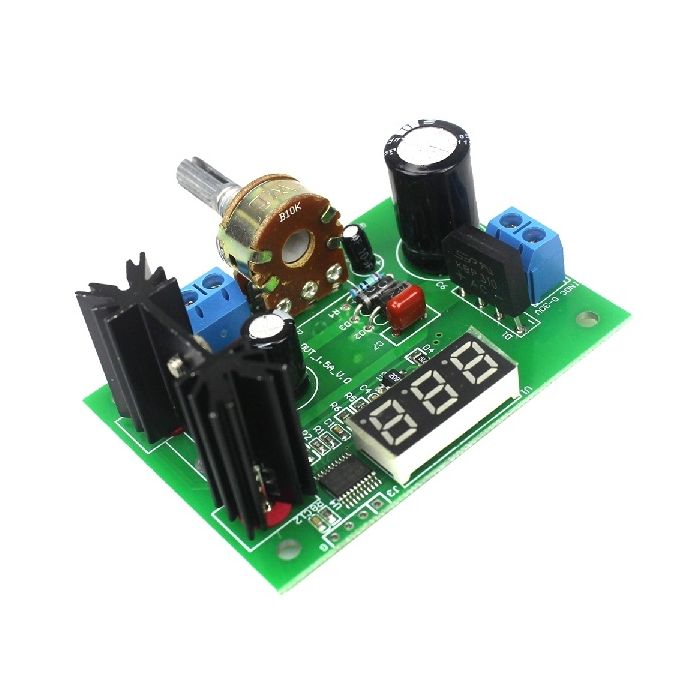

REGELBARE VOEDING 1.2-28VDC 2A MET DISPLAY
€ 14,96
€ 12,36
Artikelnummer
VM126
- ArtikelnummerVM126
- MerkBrand
- Aantal 5+ € 14,21 € 11,74
- This adjustable regulator module with AC or DC voltage input, the output voltage is 1.25V-28V DC continuously adjustable, versatile for DC board.
- Features:
- Adjustable regulator module with LED display.
- 2A or less can be loaded, AC or DC voltage input.
- The output voltage is 1.25V-28V DC continuously adjustable, versatile for DC board.
- Using double adjustment potentiometer to ensure good contact, effectively protect the load.
- Notice:
- The minimum differential between input and output is 3V; the input must be higher than the output voltage above 3V to be regulated.
- Buck, not boost, when input 5V output 1.25-2V, not 6V.
- Specifications:
- Input Voltage: DC: 0-30V; AC: 0-22V
- Output Voltage: DC 1.25-28V
- Output Current: 2A(Max.)
- Size: 62 * 59 * 27mm / (L * W * H)
