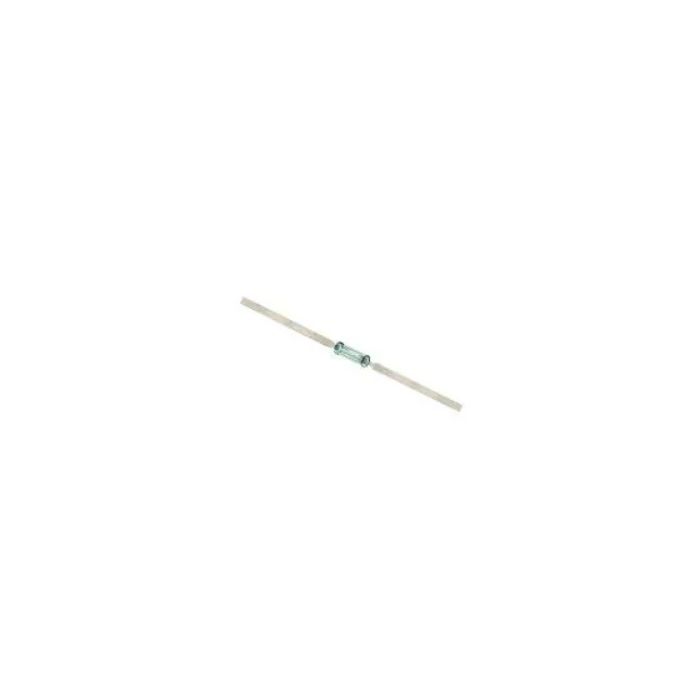

REED KONTAKT 4.1X1.45MM 1XMAAK 30V 0,3A 10W 10-15AT 10 STUKS
€ 24,95
€ 20,62
Artikelnummer
KSK1A04-10
- ArtikelnummerKSK1A04-10
- MerkMEDER
- Aantal 5+ € 22,45 € 18,55
| Technical Specifications |
| Part Nr. | Type of Contact | US | IS | RK | tS | tAb |
| [V] | [A] | [mOhm] | [ms] | [ms] | ||
| KSK1A04-10 | SPST | 30 | 0,3 | 200 | 0,2 | 0,15 |
| KSK1A35-10 | SPST | 200 | 1,0 | 150 | 0,5 | 0,1 |
| KSK1A35-15 | SPST | 200 | 1,0 | 150 | 0,5 | 0,1 |
| KSK1A46-10 | SPST | 200 | 0,5 | 150 | 0,5 | 0,05 |
| KSK1A46-15 | SPST | 200 | 0,5 | 150 | 0,5 | 0,05 |
| KSK1A52-20 | SPST | 350 | 0,5 | 150 | 1,1 | 0,1 |
| KSK1A52-30 | SPST | 350 | 0,5 | 150 | 1,1 | 0,1 |
| KSK1A52-40 | SPST | 350 | 0,5 | 150 | 1,1 | 0,1 |
| KSK1A66-10 | SPST | 180 | 0,5 | 150 | 0,5 | 0,1 |
| KSK1A66-15 | SPST | 180 | 0,5 | 150 | 0,5 | 0,1 |
| KSK1A66-20 | SPST | 180 | 0,5 | 150 | 0,5 | 0,1 |
| KSK1A87-10 | SPST | 200 | 0,4 | 150 | 0,6 | 0,1 |
| KSK1A87-15 | SPST | 200 | 0,4 | 150 | 0,6 | 0,1 |
| KSK1A87-20 | SPST | 200 | 0,4 | 150 | 0,6 | 0,1 |
| KSK1A87-40 | SPST | 200 | 0,4 | 150 | 0,6 | 0,1 |
| KSK1C90-15 | SPDT | 175 | 0,5 | 150 | 0,7 | 1,5 |
| KSK1C90-20 | SPDT | 175 | 0,5 | 150 | 0,7 | 1,5 |
| KSK1C90F-10 | SPDT | 175 | 0,5 | 150 | 0,7 | 1,5 |
| KSK1C90F-15 | SPDT | 175 | 0,5 | 150 | 0,7 | 1,5 |
| KSK1C90F-20 | SPDT | 175 | 0,5 | 150 | 0,7 | 1,5 |
| KSK1C90U-10 | SPDT | 175 | 0,5 | 150 | 0,7 | 1,5 |
| KSK1C90U-25 | SPDT | 175 | 0,5 | 150 | 0,7 | 1,5 |
| KSK1C90U-30 | SPDT | 175 | 0,5 | 150 | 0,7 | 1,5 |
| KSK1C90U-40 | SPDT | 175 | 0,5 | 150 | 0,7 | 1,5 |
| US = Switching Voltage, Max., IS = Switching Current, Max. (0,5V/10mA), RK = Contact Resistance, Max., tS = Switching Time incl. Bounce, tAb = Reset Time |
||||||
 |
||||||
| Part Nr. | PS | IT | RISO | UD | AE |
| [W] | [A] | [Ohm] | [V DC] | [AT] | |
| KSK1A04-10 | 10 | 0,5 | 109 | 100 | 10...15 |
| KSK1A35-10 | 20 | 1,25 | 1012 | 220 | 10...15 |
| KSK1A35-15 | 20 | 1,25 | 1012 | 220 | 15...20 |
| KSK1A46-10 | 10 | 1,0 | 109 | 200 | 10...15 |
| KSK1A46-15 | 10 | 1,0 | 109 | 200 | 15...20 |
| KSK1A52-20 | 50 | 2,5 | 1010 | 500 | 20...30 |
| KSK1A52-30 | 50 | 2,5 | 1010 | 500 | 30...40 |
| KSK1A52-40 | 50 | 2,5 | 1010 | 500 | 40...50 |
| KSK1A66-10 | 10 | 1,25 | 109 | 200 | 10...20 |
| KSK1A66-15 | 10 | 1,25 | 109 | 200 | 15...20 |
| KSK1A66-20 | 10 | 1,25 | 109 | 200 | 20...30 |
| KSK1A87-10 | 10 | 0,5 | 109 | 230 | 10...20 |
| KSK1A87-15 | 10 | 0,5 | 109 | 230 | 15...20 |
| KSK1A87-20 | 10 | 0,5 | 109 | 230 | 20...25 |
| KSK1A87-40 | 10 | 0,5 | 109 | 230 | 40...45 |
| KSK1C90-15 | 10 | 1,0 | 109 | 200 | 15...20 |
| KSK1C90-20 | 10 | 1,0 | 109 | 200 | 20...25 |
| KSK1C90F-10 | 10 | 0,5 | 109 | 200 | 10...15 |
| KSK1C90F-15 | 10 | 0,5 | 109 | 200 | 15...20 |
| KSK1C90F-20 | 10 | 0,5 | 109 | 200 | 20...25 |
| KSK1C90U-1 | 10 | 1,0 | 109 | 200 | 15...15 |
| KSK1C90U-25 | 10 | 1,0 | 109 | 200 | 25...30 |
| KSK1C90U-30 | 10 | 1,0 | 109 | 200 | 30...35 |
| KSK1C90U-40 | 10 | 1,0 | 109 | 200 | 40...45 |
| PS = Switching Capacity, Max., IT = Carry Current, Max., RISO = Insulation Resistance, UD = Breakdown Voltage, Min., AE = Initial Excitation (Reference Value) | |||||
