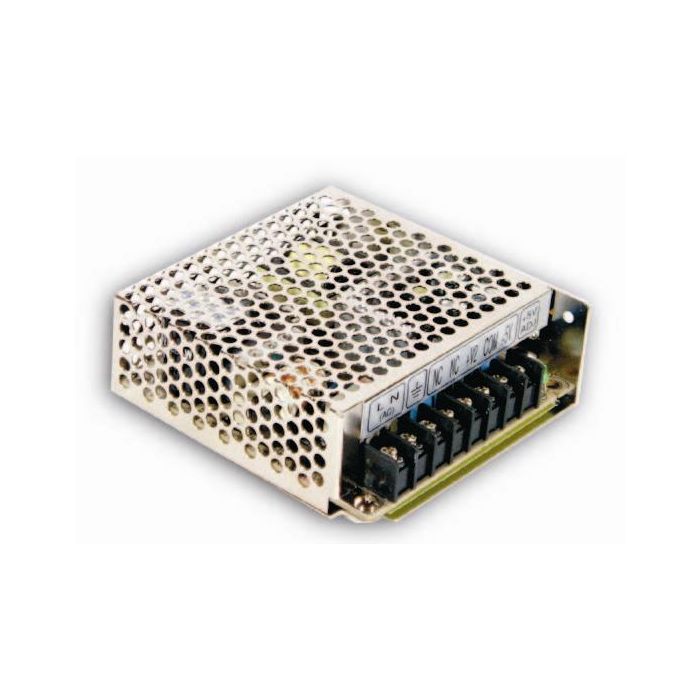

GESCHAKELDE VOEDING 54W DUAL OUTPUT +5/+12V 6.0/3.0A

Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
LED indicator for power on
100% full load burn-in test
All using 105
Withstand 300VAC surge input for 5 second
High operating temperature up to 70
Withstand 5G vibration test
High efficiency, long life and high reliability

Uitgang
dc spanning : +5V/+12V
Stroom (max.) : 6.0A/3.0A
Vermogen : : 54W
Ripple & Noise (max.) : 80mVp-p/120mVp-p
Spanning instelbaar : 4.75 ~ 5.5V/12V

Ingang spanning : 88 ~ 264VAC 125 ~ 373VDC
Frequentie : 47 ~ 63Hz
