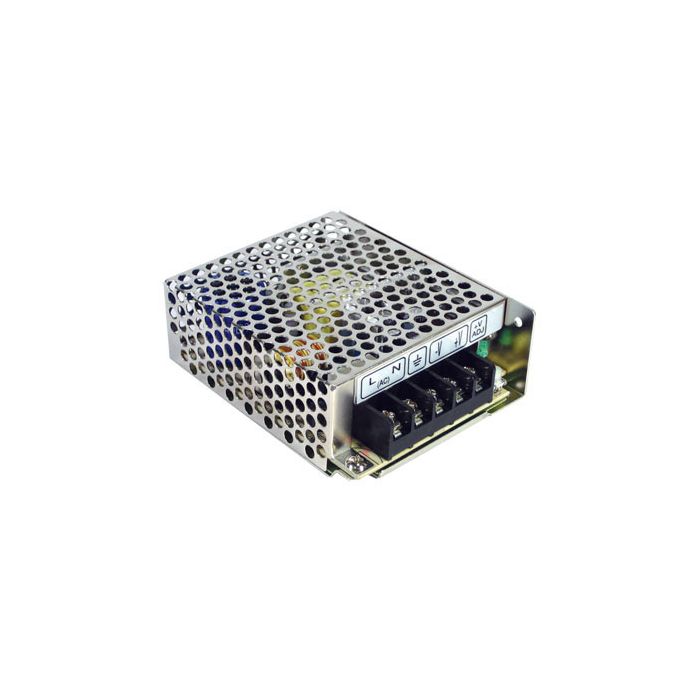

GESCHAKELDE VOEDING 35W DUAL OUTPUT +13.5/-13.5V 2.0/1.5A
€ 24,95
€ 20,62
Artikelnummer
RD3513
- ArtikelnummerRD3513
- MerkMEANWELL
- Aantal 3+ € 23,69 € 19,58
Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
LED indicator for power on
100% full load burn-in test
All using 105
Withstand 300VAC surge input for 5 second
High operating temperature up to 70
Withstand 5G vibration test
High efficiency, long life and high reliability
Uitgang
dc spanning : 13.5V/-13.5V
Stroom (max.) : 2.0A/1.5A
Vermogen : : 35W
Ripple & Noise (max.) : 120mVp-p/120mVp-p
Spanning instelbaar : 11.5 ~ 15.5V/11.5 ~ 15.5V
Ingang spanning : 88 ~ 264VAC 125 ~ 373VDC
Frequentie : 47 ~ 63Hz
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
LED indicator for power on
100% full load burn-in test
All using 105
Withstand 300VAC surge input for 5 second
High operating temperature up to 70
Withstand 5G vibration test
High efficiency, long life and high reliability
Uitgang
dc spanning : 13.5V/-13.5V
Stroom (max.) : 2.0A/1.5A
Vermogen : : 35W
Ripple & Noise (max.) : 120mVp-p/120mVp-p
Spanning instelbaar : 11.5 ~ 15.5V/11.5 ~ 15.5V
Ingang spanning : 88 ~ 264VAC 125 ~ 373VDC
Frequentie : 47 ~ 63Hz
