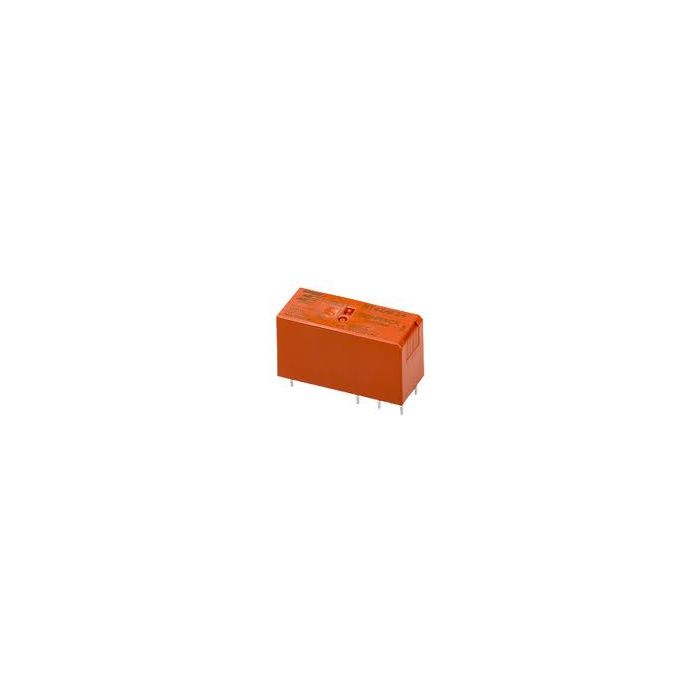

RELAIS BISTABIEL (2 SPOELEN) 24VDC 1 X WISSEL 250VAC/16A
€ 6,95
€ 5,74
Artikelnummer
RB024D1WB
- ArtikelnummerRB024D1WB
- MerkTYCO ELECTRONICS
- Aantal 5+ € 6,24 € 5,16
Features
SPDT or DPDT contact configurations
Bistable with 2 coils
5kV/10mm coil-contact, protection class II
Low height 15,7mm
Technical Specifications
24Vdc (min. 16,8Vdc)
27mA
886 Ohm
Insulation (to IEC 60664): C/250; B/400
Rated Voltage: 250V
Pollution Degree: 3
Overvoltage Category: III
Dielectric Strength
Coil/Contact: 5000Veff
Open Contact: 1000Veff
Clearance/Creepage: 10/10mm
Temperature Range: -40...+85°C
Vibration Resistance (30...500 Hz): 3/5G
Contact Data
Contact Material: AgNi 90/10
Rated/Breaking Voltage (Ohmic Load), Max. 16A/250V AC
Switching Voltage, Max.: 250V AC/440V AC
Breaking Capacity AC, Max. 4000VA
Mechanical Life 5x105 Operations
SPDT or DPDT contact configurations
Bistable with 2 coils
5kV/10mm coil-contact, protection class II
Low height 15,7mm
Technical Specifications
24Vdc (min. 16,8Vdc)
27mA
886 Ohm
Insulation (to IEC 60664): C/250; B/400
Rated Voltage: 250V
Pollution Degree: 3
Overvoltage Category: III
Dielectric Strength
Coil/Contact: 5000Veff
Open Contact: 1000Veff
Clearance/Creepage: 10/10mm
Temperature Range: -40...+85°C
Vibration Resistance (30...500 Hz): 3/5G
Contact Data
Contact Material: AgNi 90/10
Rated/Breaking Voltage (Ohmic Load), Max. 16A/250V AC
Switching Voltage, Max.: 250V AC/440V AC
Breaking Capacity AC, Max. 4000VA
Mechanical Life 5x105 Operations
