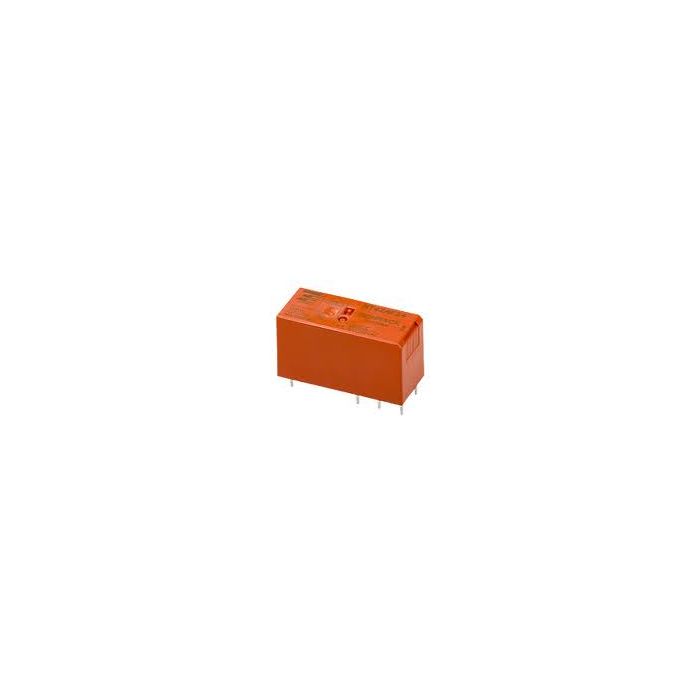

RELAIS BISTABIEL (2 SPOELEN) 12VDC 2 X WISSEL 250VAC/8A
€ 7,95
€ 6,57
Artikelnummer
RB012D2WB
- ArtikelnummerRB012D2WB
- MerkTYCO ELECTRONICS
- Aantal 5+ € 7,15 € 5,91
Features
SPDT or DPDT contact configurations
Bistable with 2 coils
5kV/10mm coil-contact, protection class II
Low height 15,7mm
Technical Specifications
12Vdc (min. 8,4Vdc)
50mA
240 Ohm
Insulation (to IEC 60664): C/250; B/400
Rated Voltage: 250V
Pollution Degree: 3
Overvoltage Category: III
Dielectric Strength
Coil/Contact: 5000Veff
Open Contact: 1000Veff
Clearance/Creepage: 10/10mm
Temperature Range: -40...+85°C
Vibration Resistance (30...500 Hz): 3/5G
Contact Data
Contact Material: AgNi 90/10
Rated/Breaking Voltage (Ohmic Load), Max.8A/250V AC
Switching Voltage, Max.: 250V AC/440V AC
Breaking Capacity AC, Max. 2000VA
Mechanical Life 2x105 Operations
