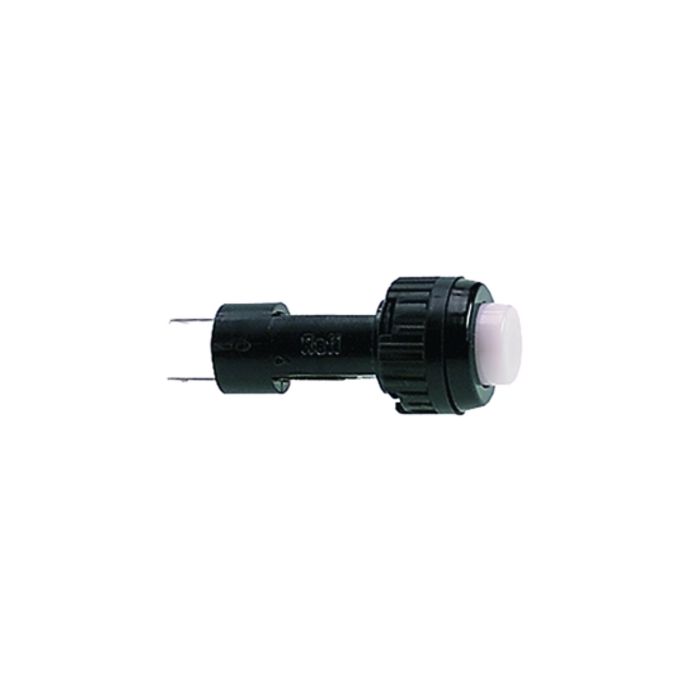

BUTTON ROND MAAK 25VAC 0.1A ZWART

General information
Colour of lens opaque zwart
Form of lens protruding lens
Form of collar round

Dimensions
Overall height 4.5 mm
Diameter of collar 11 mm
Mounting depth 25.5 mm
Mounting hole 9.1 mm

Electrical characteristics
Contact resistance max. 200 mÙ
Rated voltage AC max. 24 V
Rated voltage DC max. 24 V
Rated current max. 0.1 A

Mechanical characteristics
Robustness min. 100 N
Operating force max. 7 N
Operating travel 2 mm
Switching travel NO 1.3 mm

Mechanical design
Terminals solder terminals
Mounting ring nut
Illuminability no
Contact arrangement 1 NO
Contact function momentary
Contact system bridge contact
Contact materials Ag
Lamp socket no

Other specifications
Ambient temp. operating max. +70 °C
Ambient temp. operating min. -25 °C
Weight 2 g
Resistance to constant environment according to IEC 600 68-2-3 and 2-30
Storage temperature max. +80 °C
Storage temperature min. -40 °C
Operating life 40000
Soldering time max. 3 sec.
Soldering temperature max. 350 °C
Degree of protection from front side IP40
