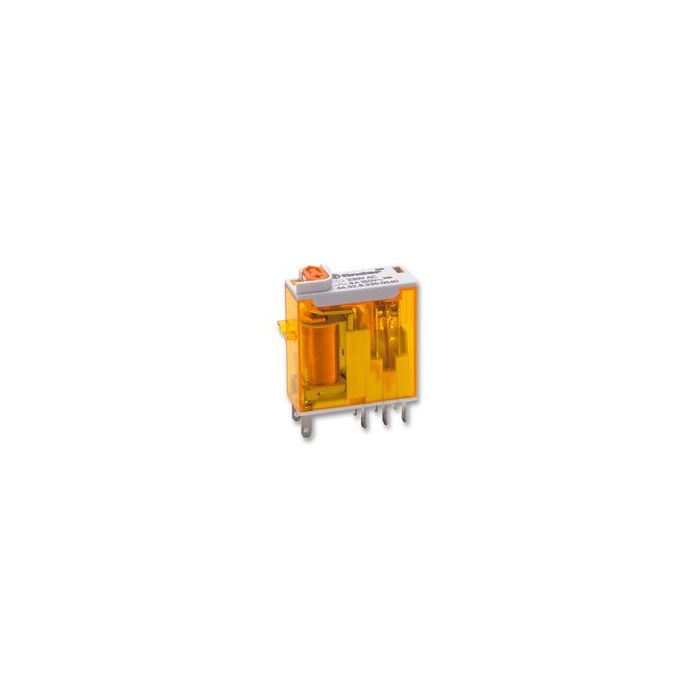

RELAIS 230VAC 2 X WISEL 230VAC/8A STEEK

RELAY, DPCO, 8A, 230VAC
Relay Type: Miniature
Coil Voltage VAC Nom: 230V
Contact Current Max: 15A
Contact Voltage AC Nom: 250V
Coil Resistance: 28kohm
Contact Configuration: DPDT
Coil Type: AC
Coil Current: 45mA
Nom Operating Power: 1.2VA
Relay Mounting: Quick Connect
External Height: 32.8mm
External Width: 29mm
External Depth: 12.4mm
SVHC: No SVHC (18-Jun-2012)
Approval Bodies: CSA / GOST / RINA / VDE
Approval Category: UL Recognised
Contact Current AC Max: 15A
Contact Current Rating: 8A
Contact Material: AgNi
Contact Voltage AC Max: 250V
Dielectric Voltage Contact to Contact: 1000VAC
External Length / Height: 32.8mm
Mounting Type: Plug-In
No. of Electrical Operations: 100000
No. of Mechanical Operations: 10000000
No. of Pins: 8
No. of Poles: 2
Operating Temperature Max: 70°C
Operating Temperature Min: -40°C
Operating Time: 10ms
Release Time: 3ms
Series: 46
Switching Voltage AC / DC Max: 440VAC
