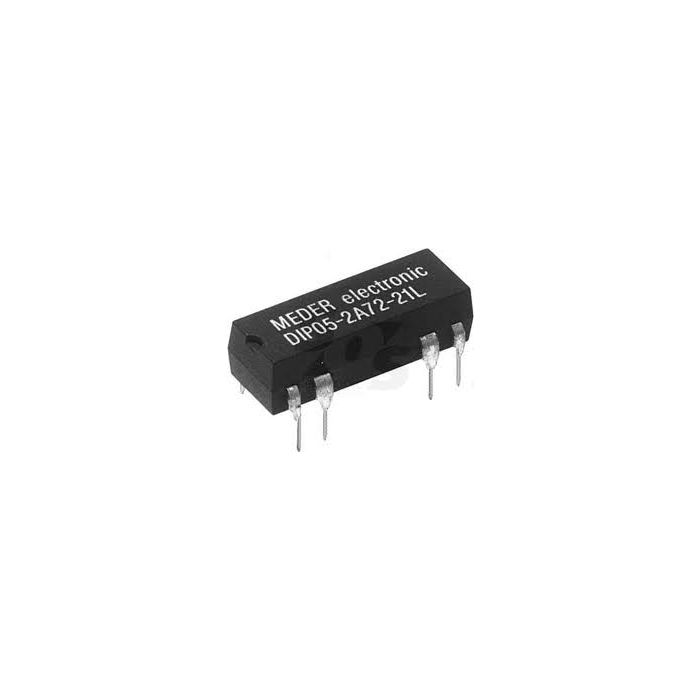

RELAIS DIL REED 24VDC/2K OHM/12MA 2 X MAAK 15W/1A
€ 8,95
€ 7,40
Artikelnummer
R024D2MA
- ArtikelnummerR024D2MA
- MerkMEDER
- Aantal 5+ € 8,06 € 6,66
Features
Fully encapsulated
Flux sealed construction
Plug-in a 14-pole DIP/DIL-IC socket (see note)
DIP_21L: High-profile
DIP_21D: High-profile, with integrated diode parallel to coil
Technical Specifications
Insulation Resistance (Coil/Contacts): 1012W
Insulation (Coil/Contacts): 1.500V DC
Temperature Range: -20...+70°C
Operate Time (incl. Bounce): 0,5ms
Release Time: 0,1ms
Vibration Resistance (10...2000Hz): 20G
Soldering Temperature/Time: 260°C/10s
Contact Data
Configuration: DPST-NO
Contact Resistance: 150mW
Switching Capacity, Max.: 15W
Switching Voltage, Max.: 200V DC
Switching Current, Max.: 1,0A
Current after Closure, Max.: 1,25A
Breakdown Voltage, Min.: 250V DC
Coil Data
Coil Type: DIP_21L: Non-Polarized, Monostable
