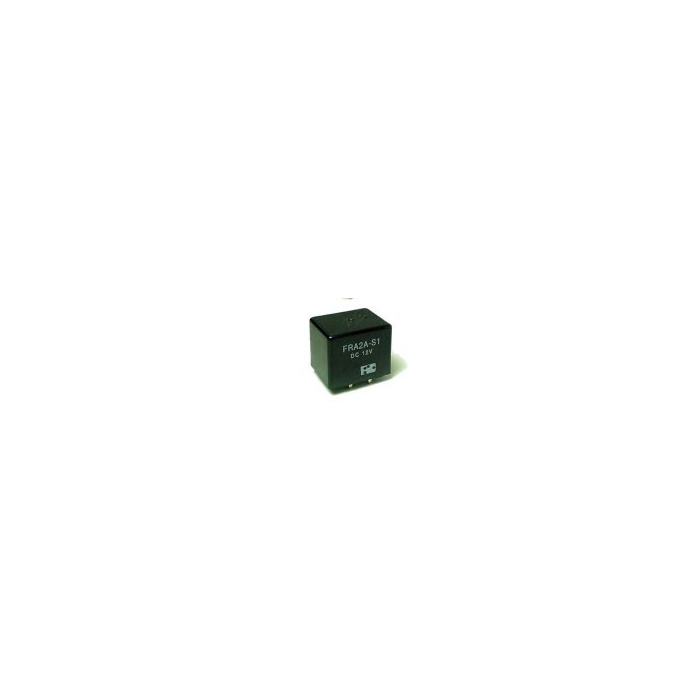

RELAIS PRINT 1XOM 24VDC 362 OHM SCHAKELVERMOGEN 30A/75VDC WATERDICHT

Features
• FRA_-WD: wash tight enclosure in accordance with IP 67

Technical Specifications
Contact: SPDT
Contact Material: AgSnO2
Rated Current: 30A
Max. Switching Current: 60A
Max. Switching Voltage: 75V DC
Max. Switching Power: 630W
Operate/Release Time: 5/3ms

Testing Voltage
Coil/Contact: 750V
Opening Contact: 750V

Lifetime
Mechanical: 10x106 Operations
Electrical: 1x105 Operations
Operating Temperature: -40...+85 °C
