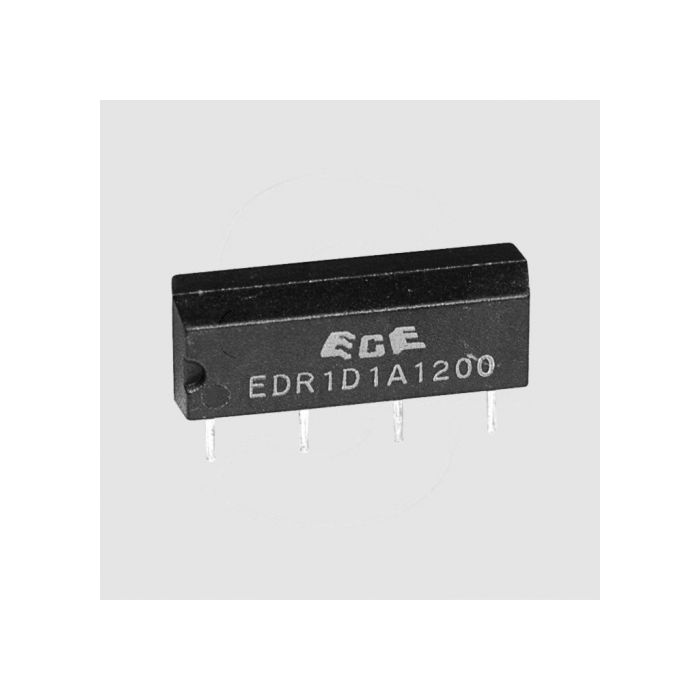

RELAIS SIL REED 24VDC/2150 OHM/12MA 1 X MAAK 10VA/0.5A + DIODE 10 STUKS

Features
• Wash Tight
• High coil resistance
• Insulation resistance (coil/contacts): 1400V
• Requires only half the PCB area of DIP/DIL relays
• EDR1D1_: with diode

Technical Specifications
Insulation Resistance (Coil/Contacts), Min.: 1010W
Insulation (Coil/Contacts): 1400V DC
Storage Temperature: -55...+125°C
Temperature Range: -40...+85°C
Operate Time (incl. Bounce Time): 1,0ms
Reset Time: 0,5ms
Vibration Resistance (50...500Hz): 30G

Contact Data
Configuration: SPST-NO
Contact Resistance, Max.: 150mW
Switching Capacity, Max.: 10VA
Switching Voltage, Max.: 100V DC
Switching Current, Max.: 0,5A
Current After Closed Contact: 1,0A
Breakdown Voltage: 250V DC

Coil Data
Coil Type: Polarized, Monostable
