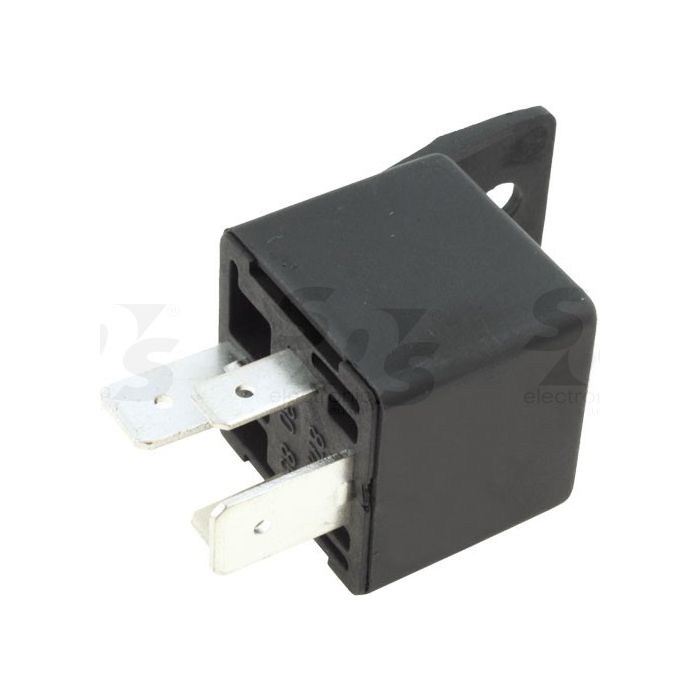

AUTORELAIS 1 X MAAK 24VDC 80R 70A
€ 6,72
€ 5,55
Artikelnummer
R024D1ME
- ArtikelnummerR024D1ME
- MerkFIC
- Aantal 5+ € 6,04 € 4,99
Features
| • High contact ratings 70A • PCB terminals |
 |
| Technical Specifications |
|
|
| Contact: | SPST-NO |
| Contact Material: | AgSnO2 |
| Rated Current: | 70A |
| Max. Switching Current: | 75V DC |
| Operate/Release Time: | 10/10ms |
| Testing Voltage Coil/Contact: | 500V AC |
| Lifetime | |
| Mechanical: | 10x106 Operations |
| Electrical: | 1x105 Operations |
| Operating Temperature: | -40...+85°C |
| Weight Approx.: | 47g |
|
|
| Coil Data |
| Part Nr. | UN | Umax. | UAn | UAb | IN | PN | RN |
| [V DC] | [V] | [V] | [V] | [mA] | [mW] | [W] | |
| FRC3-12F | 12 | 18 | 7,8 | 1,2 | 150 | 1800 | 80 |
| FRC3-24F | 24 | 36 | 15,6 | 2,4 | 75 | 1800 | 320 |
| UN = Rated Voltage, Umax. = Maximum Operating Voltage, UAn = Operate Voltage, UAb = Release Voltage, IN = Rated Current, PN = Rated Power, RN = Coil Resistance; All Specifications Measured at 20°C | |||||||
