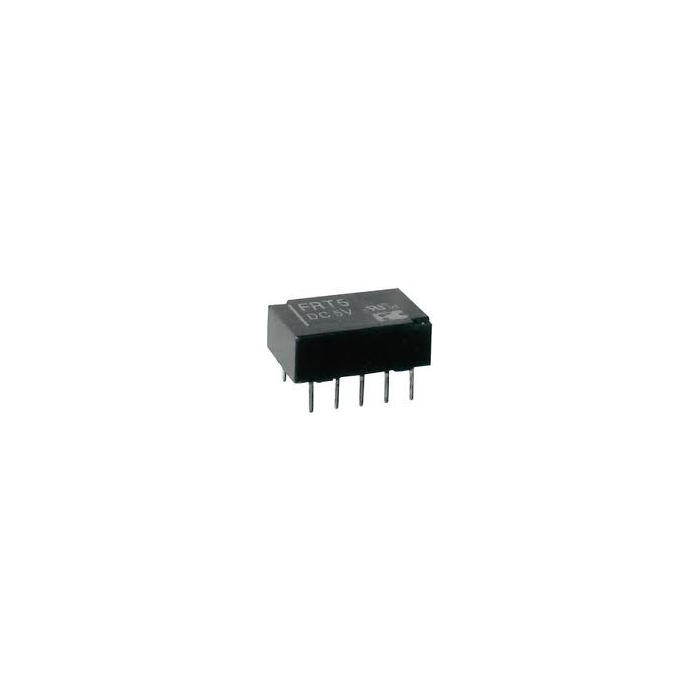

RELAIS PRINT 12VDC/1028 OHM/12MA 2XWISSEL 125VAC/0,5A 30VDC/1A
€ 3,21
€ 2,65
Artikelnummer
R012D2WN
- ArtikelnummerR012D2WN
- MerkFICRELAY
- Aantal 5+ € 2,88 € 2,38
Features
Small size and ultra slim (only 5mm)
Low coil power consumption with 140mW
Single side stable
Wash tight construction RTIII (IP67)
PCB mounting or insertable in a DIP/DIL socket
Technical Specifications
Contact: DPDT
Contact Material: AgPd / AgPdAu
Contact Rating: 1A / 30V DC 0,5A / 125V AC
Rated Current: 1A
Max. Switching Current: 1A
Max. Switching Voltage: 250V AC / 220V DC
Max. Switching Power: 30W / 62,5VA
Operate/Release Time: £2/1ms
Testing Voltage (FCC)
Coil/Contact: 1500V AC
Contact/Contact: 1500V AC
Lifetime
Electrical (1A/30V DC): 2x105 Operations
Mechanical: 1x108 Operations
Operating Temperature: -40...+70°C
Weight Approx.: 1,5g
Small size and ultra slim (only 5mm)
Low coil power consumption with 140mW
Single side stable
Wash tight construction RTIII (IP67)
PCB mounting or insertable in a DIP/DIL socket
Technical Specifications
Contact: DPDT
Contact Material: AgPd / AgPdAu
Contact Rating: 1A / 30V DC 0,5A / 125V AC
Rated Current: 1A
Max. Switching Current: 1A
Max. Switching Voltage: 250V AC / 220V DC
Max. Switching Power: 30W / 62,5VA
Operate/Release Time: £2/1ms
Testing Voltage (FCC)
Coil/Contact: 1500V AC
Contact/Contact: 1500V AC
Lifetime
Electrical (1A/30V DC): 2x105 Operations
Mechanical: 1x108 Operations
Operating Temperature: -40...+70°C
Weight Approx.: 1,5g
