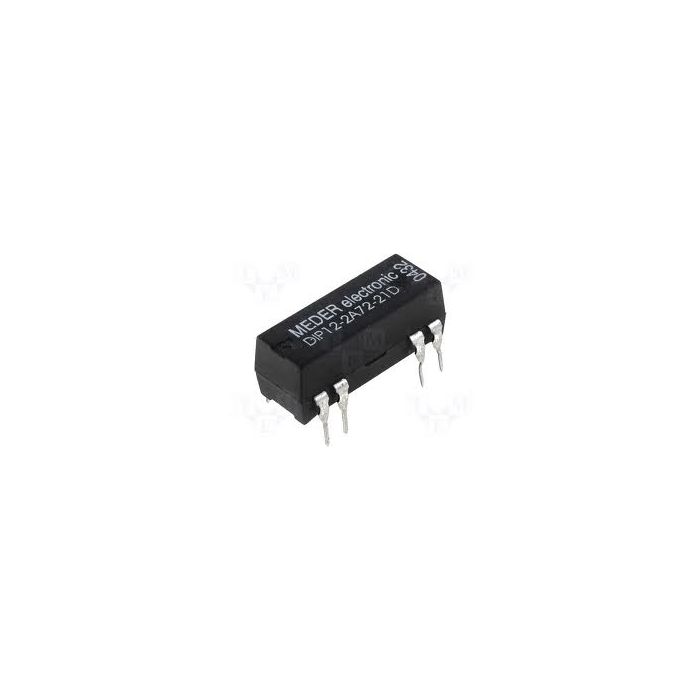

RELAIS DIL REED 12VDC/500 OHM/24MA 2 X MAAK 15W/1A + DIODE

Features
• Fully encapsulated
• Flux sealed construction
• Plug-in a 14-pole DIP/DIL-IC socket (see note)
• DIP_21D: High-profile, with integrated diode parallel to coil

Technical Specifications
Insulation Resistance (Coil/Contacts): 1012W
Insulation (Coil/Contacts): 1.500V DC
Temperature Range: -20...+70°C
Operate Time (incl. Bounce): 0,5ms
Release Time: 0,1ms
Vibration Resistance (10...2000Hz): 20G
Soldering Temperature/Time: 260°C/10s

Contact Data
Configuration: DPST-NO
Contact Resistance: 150mW
Switching Capacity, Max.: 15W
Switching Voltage, Max.: 200V DC
Switching Current, Max.: 1,0A
Current after Closure, Max.: 1,25A
Breakdown Voltage, Min.: 250V DC

Coil Data
Coil Type:
DIP_21D: Polarized, Monostable
