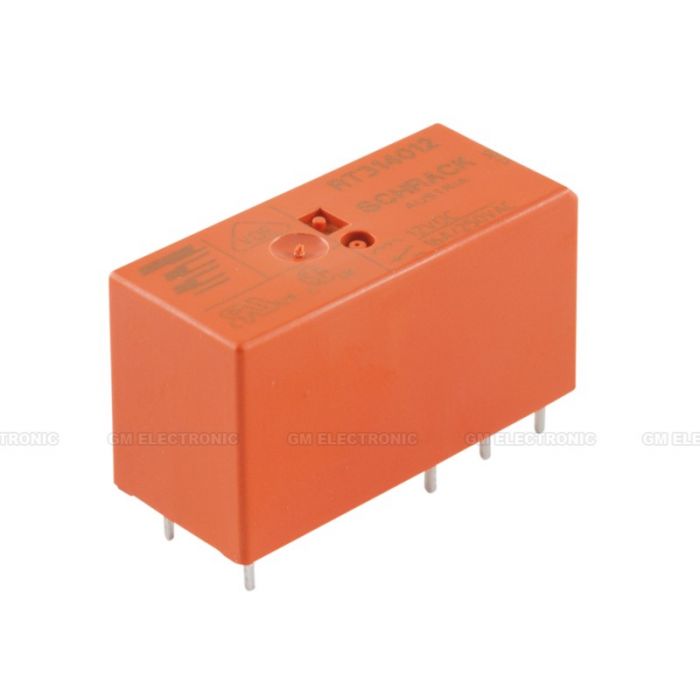

PRINTRELAIS 1XOM 12VDC 360 OHM SCHAKELVERMOGEN 16A/230VAC
€ 4,50
€ 3,72
Artikelnummer
R012D1WY
- ArtikelnummerR012D1WY
- MerkTE
- Aantal 5+ € 4,04 € 3,34
Features
1 C/O or 1 N/O contact
Sensitive coil 400 mW
5 kV / 10 mm coil-contact, Protection class II
Ambient temperature 85°C (DC-coil)
Height 15.7 mm
Sockets with PCB-type or screw-type terminals
Gold plated contacts available
RoHS compliant (Directive 2002 / 95 / EC) as per
product date code 0413
Contact data
Configuration 1 C/O
Type of contact single contact
Rated current 16 A
Rated voltage / max.breaking voltage AC 250 Vac
Maximum breaking capacity 4000 VA
Make current (max. 4 s at duty cycle 10%) 30 A
Contact material AgNi 90/10,
1 C/O or 1 N/O contact
Sensitive coil 400 mW
5 kV / 10 mm coil-contact, Protection class II
Ambient temperature 85°C (DC-coil)
Height 15.7 mm
Sockets with PCB-type or screw-type terminals
Gold plated contacts available
RoHS compliant (Directive 2002 / 95 / EC) as per
product date code 0413
Contact data
Configuration 1 C/O
Type of contact single contact
Rated current 16 A
Rated voltage / max.breaking voltage AC 250 Vac
Maximum breaking capacity 4000 VA
Make current (max. 4 s at duty cycle 10%) 30 A
Contact material AgNi 90/10,
