Product toegevoegd aan winkelwagen

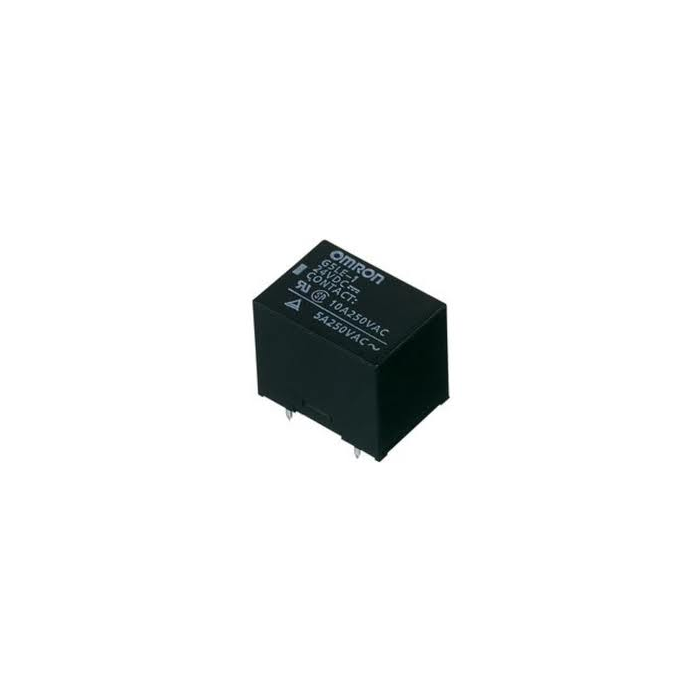

RELAIS PRINT 1XOM 12VDC 360 OHM SCHAKELVERMOGEN 10A/250VAC10 STUKS
€ 24,50
€ 20,25
Artikelnummer
R012D1WW
- ArtikelnummerR012D1WW
- MerkOMRON
- Aantal 5+ € 22,05 € 18,22
Features
Sensitive coil: 400mV
2kV Coil/Contact
Flux protected enclosure
Withstands impulse of up to 4500V
Technical Specifications
Contact: SPDT (Circular Contact)
Contact Material: AgSnO2
Rated Current: 10A
Max. Switching Current: 10A
Max. Switching Voltage: 250V AC
Max. Switching Power: 1200VA
Creepage/Clearance: 3,3/2,7mm
Operate/Release Time: 10/5ms
Testing Voltage
Coil/Contact: 2000V
Contact/Contact: 750V
Lifetime
Mechanical: 10x106 Operations
Electrical: 10x104 Operations
Operating Temperature: -40...+85°C
Weight Approx.: 12g
Rated Voltage: 12Vdc
Maximum Operating Voltage: 15,6Vdc
Operate Voltage: 9Vdc
Release Voltage: 1,2Vdc
Rated Current: 33,3mA
Rated Power: 400mW
Coil Resistance: 360 Ohm
Specifications Measured at 23°C
Sensitive coil: 400mV
2kV Coil/Contact
Flux protected enclosure
Withstands impulse of up to 4500V
Technical Specifications
Contact: SPDT (Circular Contact)
Contact Material: AgSnO2
Rated Current: 10A
Max. Switching Current: 10A
Max. Switching Voltage: 250V AC
Max. Switching Power: 1200VA
Creepage/Clearance: 3,3/2,7mm
Operate/Release Time: 10/5ms
Testing Voltage
Coil/Contact: 2000V
Contact/Contact: 750V
Lifetime
Mechanical: 10x106 Operations
Electrical: 10x104 Operations
Operating Temperature: -40...+85°C
Weight Approx.: 12g
Rated Voltage: 12Vdc
Maximum Operating Voltage: 15,6Vdc
Operate Voltage: 9Vdc
Release Voltage: 1,2Vdc
Rated Current: 33,3mA
Rated Power: 400mW
Coil Resistance: 360 Ohm
Specifications Measured at 23°C
