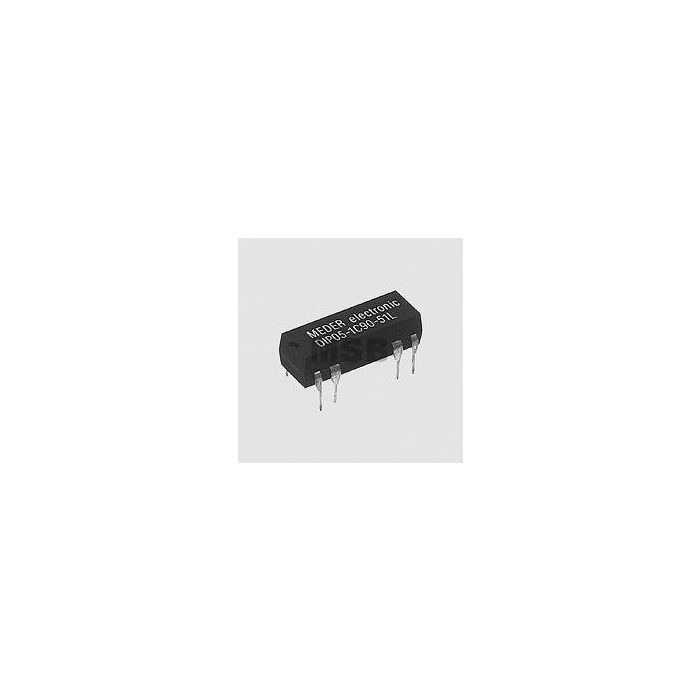

RELAIS DIL REED 12VDC/500 OHM/24MA 1 X WISSEL 10W/0.5A
€ 9,95
€ 8,22
Artikelnummer
R012D1WU
- ArtikelnummerR012D1WU
- MerkMEDER
- Aantal 5+ € 8,94 € 7,39
Features
Fully encapsulated
Flux sealed construction
Plug-in a 14-pole DIP/DIL-IC socket (see note)
TTL control possible
DIP_51L: Low-profile
Technical Specifications
Insulation Resistance (Coil/Contacts): 1012GW
Insulation (Coil/Contacts): 1.500V DC
Temperature Range: -20...+70°C
Operate Time (incl. Bounce): 0,7ms
Release Time: 1,0ms
Vibration Resistance (10...2000Hz): 10G
Soldering Temperature/Time: 260°C/5s
Contact Data
Configuration: SPDT
Contact Resistance: 150mW
Switching Capacity, Max.: 10W
Switching Voltage, Max.: 175V DC
Switching Current, Max.: 0,5A
Current Measured After Closure, Max.: 1,0A
Breakdown Voltage, Min.: 200V DC
Coil Data
Coil Type: Non-Polarized, Monostable
Fully encapsulated
Flux sealed construction
Plug-in a 14-pole DIP/DIL-IC socket (see note)
TTL control possible
DIP_51L: Low-profile
Technical Specifications
Insulation Resistance (Coil/Contacts): 1012GW
Insulation (Coil/Contacts): 1.500V DC
Temperature Range: -20...+70°C
Operate Time (incl. Bounce): 0,7ms
Release Time: 1,0ms
Vibration Resistance (10...2000Hz): 10G
Soldering Temperature/Time: 260°C/5s
Contact Data
Configuration: SPDT
Contact Resistance: 150mW
Switching Capacity, Max.: 10W
Switching Voltage, Max.: 175V DC
Switching Current, Max.: 0,5A
Current Measured After Closure, Max.: 1,0A
Breakdown Voltage, Min.: 200V DC
Coil Data
Coil Type: Non-Polarized, Monostable
