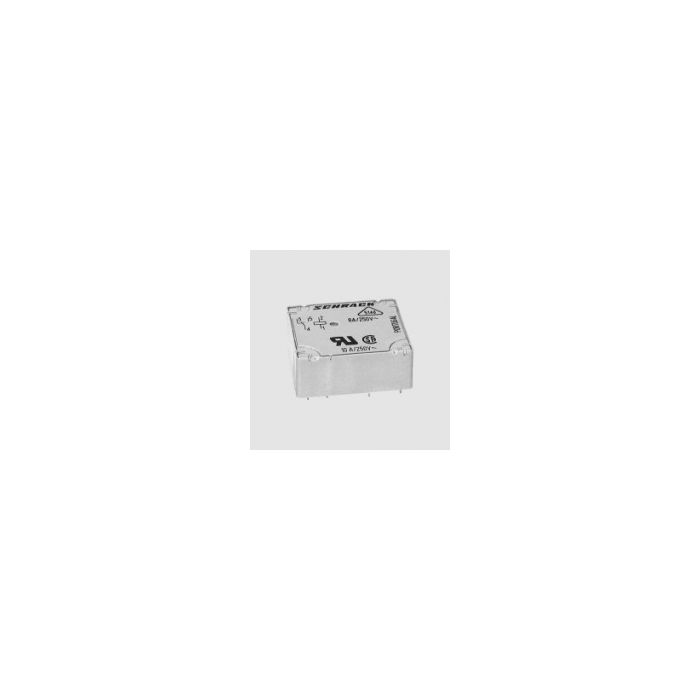

RELAIS STAAND 1XOM 12VDC 330 OHM SCHAKELVERMOGEN 8A/250VAC

Features

• SPDT
• Wash tight version (IP67)
• Conforms to: VDE 0435/9.72 \"Regulations for electrical relays in power

Technical Specifications
Insulation (According to VDE0110): B/380, C/250
Insulation Resistance, Max. (500V DC): >104MW

Dielectric Strength
Coil/Contact: 4000Veff
Open Contact Circuit: 1000Veff
Clearance/Creepage: 4mm
Temperature Range (45...85% RH): -40...+70°C
Operate Time, Typ.: 7ms
Release Time, Typ.: 3ms
Bounce Time, Typ.: 3ms
Weight: Approx. 20g


Contact Data
Contact Configuration: SPDT
Contact Type: Single Contact
Contact Material: AgCdO
Rated-Breaking Capacity (Ohmic Load): 2000VA
Rated Voltage: 250V AC
Breaking Voltage Max.: 400V AC, 300V DC
Rated Current 8A
Make Current (Max. 4s at 10% Duty Cycle): 15A

Operating Life
Mechanical, Approx.: 2x107 Operations
Electrical at Rated Load: 1x105 Operations

Switching Frequency
Without Load: 1200 Operations/Min
With Rated Load: 30 Operations/Min
