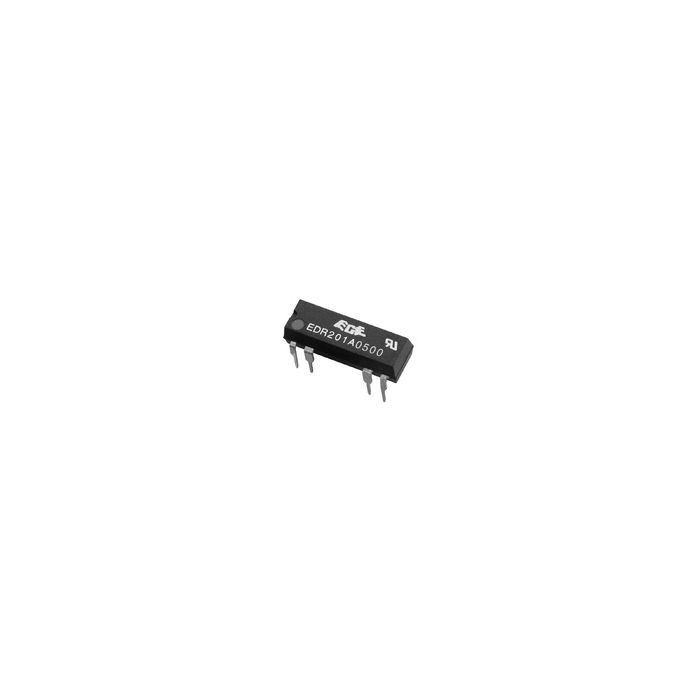

RELAIS DIL REED 12VDC/500 OHM/12MA 1 X MAAK 10VA/0.5A 9 STUKS
€ 24,74
€ 20,45
Artikelnummer
R012D1MJ
- ArtikelnummerR012D1MJ
- MerkECE
- Aantal 5+ € 22,26 € 18,40
Features
Flux sealed construction
Plug-in a 14-pole DIP/DIL-IC socket (see note)
TTL-control possible
DIP_12D: High-profile, with integrated diode parallel to coil
Technical Specifications
Insulation Resistance (Coil/Contacts): 1012W
Insulation (Coil/Contacts): 1500V DC
Temperature Range: -20...+70°C
Operate Time (incl. Bounce): 0,5ms
Release Time: 0,1ms
Vibration Resistance (10...2000Hz): 20G
Soldering Temperature/Time: 260°C/5s
Contact Data
Configuration: SPST-NO
Contact Resistance: 150mW
Switching Capacity, Max.: 15W
Switching Voltage, Max.: 200V DC
Switching Current, Max.: 1,0A
Current After Closure, Max.: 1,25A
Breakdown Voltage, Min.: 250V DC
Coil Data
Coil Type: Polarized, Monostable
Flux sealed construction
Plug-in a 14-pole DIP/DIL-IC socket (see note)
TTL-control possible
DIP_12D: High-profile, with integrated diode parallel to coil
Technical Specifications
Insulation Resistance (Coil/Contacts): 1012W
Insulation (Coil/Contacts): 1500V DC
Temperature Range: -20...+70°C
Operate Time (incl. Bounce): 0,5ms
Release Time: 0,1ms
Vibration Resistance (10...2000Hz): 20G
Soldering Temperature/Time: 260°C/5s
Contact Data
Configuration: SPST-NO
Contact Resistance: 150mW
Switching Capacity, Max.: 15W
Switching Voltage, Max.: 200V DC
Switching Current, Max.: 1,0A
Current After Closure, Max.: 1,25A
Breakdown Voltage, Min.: 250V DC
Coil Data
Coil Type: Polarized, Monostable
