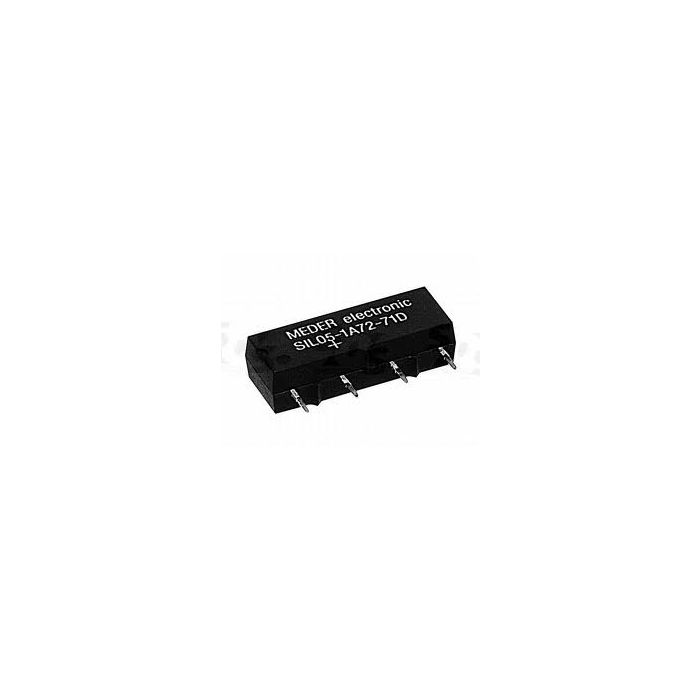

RELAIS SIL REED 5VDC/500 OHM/10MA 1 X MAAK 15W/1A + DIODE

Features
• Flux density version
• High coil resistance
• Loop current detection
• Insulation resistance (coil/contacts): 1500V
• Requires only half the PCB area of DIP/DIL relays
• SIA_D_: with diode

Technical Specifications
Insulation Resistance (Coil/Contacts), Min.: 1013W
Insulation (Coil/Contacts): 1500V DC
Storage Temperature: -35...+95°C
Temperature Range: -20...+70°C
Operate Time (incl. Bounce Time): 0,7ms
Reset Time: 0,1ms
Vibration Resistance (10...2000Hz): 20G
Soldering Temperature/Time: 260°C/5s

Contact Data
Configuration: SPST-NO
Contact Resistance, Max.: 150mW
Switching Capacity, Max.: 15W
Switching Voltage, Max.: 200V DC
Switching Current, Max.: 1,0A
Current After Closed Contact, Max.: 1,25A
Breakdown Voltage: 250V DC

Coil Data
Coil Type: Polarized, Monostable
