SPEAKER BREEDBAND 4 OHM 20/30W 60-15000HZ 84DB 130MM

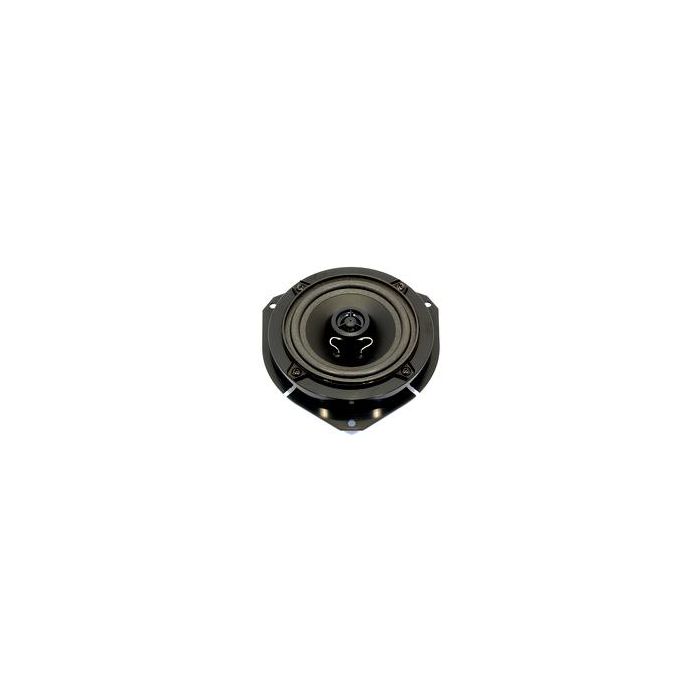

13 cm (5\") 2-way coaxial loudspeaker with piezoelectric tweeter and adapter ring for fitting into the door of Fiat Ducato (as from 2006).

Typical applications•Vehicles
•Mobile homes

Technical DataRated power 20 W
Maximum power 30 W
Nominal impedance Z 4 Ohm
Frequency response 60–15000 Hz

Mean sound pressure level 84 dB (1 W/1 m)
Opening angle (-6 dB) 75°/4000 Hz
Excursion limit +/−2 dB
Resonance frequency fs 95 Hz
Magnetic induction 1,0 T
Magnetic flux 190 µWb
Height of front pole-plate 3 mm
Voice coil diameter 20 mm
Height of winding 5,5 mm
Net weight 0,53kg
Temperature range −25 ... 70 °C
