SPEAKER BREEDBAND 4 OHM 20/30W 60-15000HZ 84DB 130MM
€ 28,50
€ 23,55
Artikelnummer
PX13
- ArtikelnummerPX13
- MerkVISATON
- Aantal 4+ € 27,07 € 22,37

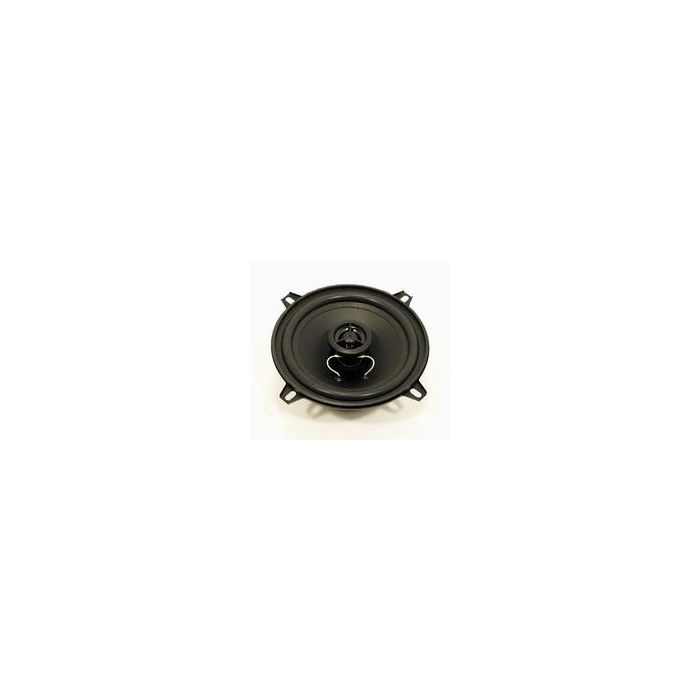

13 cm (5\") 2-way coaxial loudspeaker with standard basket and piezoelectric tweeter. Straightforward installation in vehicles with cutouts for 13 cm speakers.
Typical applicationsVehicles
Mobile homes
AttributesPolypropylene cone
Metal basket
Coaxial speaker
Technical DataRated power 20 W
Maximum power 30 W
Nominal impedance Z 4 Ohm
Frequency response 6015000 Hz
Mean sound pressure level 84 dB (1 W/1 m)
Opening angle (-6 dB) 75°/4000 Hz
Excursion limit +/−2 mm
Resonance frequency fs 95 Hz
Magnetic induction 1,0 T
Magnetic flux 190 µWb
Height of front pole-plate 3 mm
Voice coil diameter 20 mm
Height of winding 5,5 mm
Cutout diameter 116 mm
Net weight 0,48 kg
Temperature range −25 ... 70 °C
