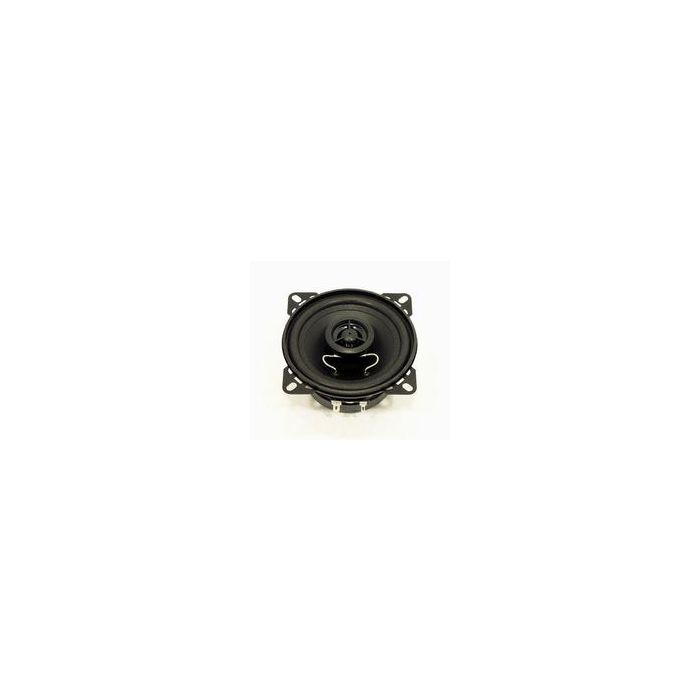

SPEAKER BREEDBAND 4 OHM 20/30W 70-18000HZ 83DB 93MM

10 cm (4\") 2-way coaxial loudspeaker with standard basket and piezoelectric tweeter. Straightforward installation in vehicles with cutouts for 10 cm speakers. Waterproof PP-cone.

Typical applications•Vehicles
•Mobile homes

Attributes•Polypropylene cone
•Metal basket
•Coaxial speaker

Technical DataRated power 20 W
Maximum power 30 W
Nominal impedance Z 4 Ohm
Frequency response 70–18000 Hz

Mean sound pressure level 83 dB (1 W/1 m)
Opening angle (-6 dB) 107°/4000 Hz
Excursion limit +/−2 mm
Resonance frequency fs 110 Hz
Height of front pole-plate 3 mm
Voice coil diameter 20 mm
Height of winding 5,2 mm
Cutout diameter 93 mm
Net weight 0,385 kg
Temperature range −25 ... 70 °C
