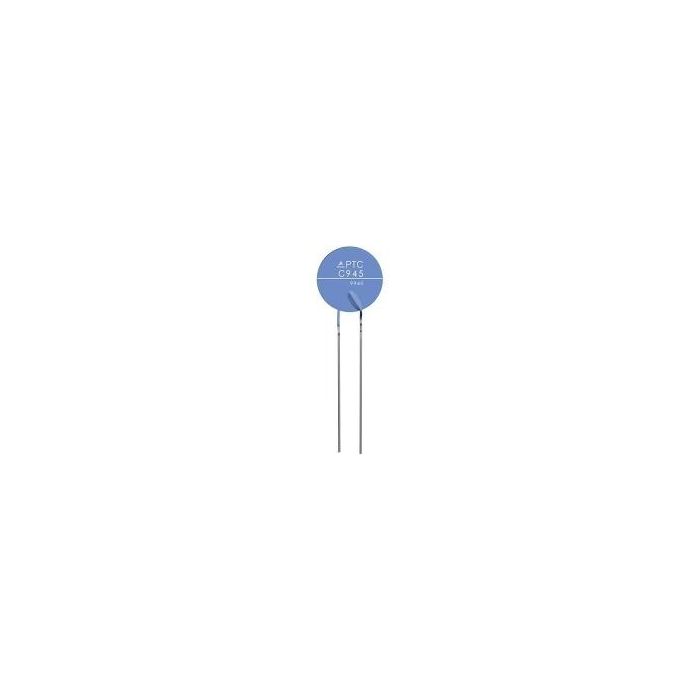

PTC 150.0 OHM 40MA 265V 80GRD

€ 2,50 € 2,07
Artikelnummer
PTC150
  • ArtikelnummerPTC150
  • MerkBrand
  • Aantal 5+   € 2,25 € 1,86
Print deze pagina Print deze pagina

Features
• Ceramic PTC Thermistors provide overcurrent protection for single-phase motors, transformers etc. as well as electronic circuits (subscriber line interface cards)
• The ceramic PTC resistor contrary to PTC's are polymer-based and after repeated cooling returns to its initial resistance value
• By responding to inadmissibly high currents and protecting pre-selected temperature limits which have been exceeded; the thermal dissipation from the complete power circuit is limited, as the increased resistance of the current is reduced to a harmless residual value
• The PTC resistor must not be exchanged after the maximum temperature has been exceeded, as after a short cooling period, the protective function immediately takes over
• Overcurrent and short-current protection
• Leaded discs coated
• Pitch 5,08mm

Technical Specifications


  PTC30V_ PTC265V_
Operating Voltage (TA = 60°C): 30V 265V
Rated Voltage: 24V 230V
Resistance Tolerance: ±25% ±25%
Switching Cycles: 100 100
Temperature Range
U = 0: -40...+125°C -40...+125°C
U = UMax.: 0...+60°C 0...+60°C

Part Nr. UMax. TRef. RN IN IS ISMax. IR
  [V] [°C] [Ohm] [mA] [mA] [A] [mA]
PTC30V0.8 30 120 0,8 850 1700 5,5 80
PTC30V1.2 30 120 1,2 600 1200 4,3 70
PTC30V1.8 30 120 1,8 450 900 3,0 60
PTC30V4.6 30 120 4,6 250 500 1,0 45
PTC30V13 30 120 13,0 120 240 0,7 25
PTC265V6 265 80 6,0 170 350 4,1 10
PTC265V10 265 80 10,0 110 230 2,2 8
PTC265V15 265 80 15,0 90 180 1,5 6
PTC265V25 265 80 25,0 60 130 1,0 5
PTC265V70 265 80 70,0 30 70 0,4 4
PTC265V150 265 80 150,0 15 40 0,2 3
UMax. = Operating Voltage, Max. (60 °C), TRef. = Ambient Temperature, RN = Rated Resistance, IN = Rated Current, IS = Switching Current, ISMax. = Max. Permissible Switching at UMax.
IR = Residual Current at UMax.
Dimensions

Part Nr. bMax. Ø d hMax.
  [mm] [mm] [mm]
PTC30V0.8 13,5 0,6 17,0
PTC30V1.2 11,0 0,6 14,5
PTC30V1.8 9,0 0,6 12,5
PTC30V4.6 6,5 0,6 10,0
PTC30V13 4,0 0,5 7,5
PTC265V6 17,5 0,6 21,0
PTC265V10 13,5 0,6 17,0
PTC265V15 11,0 0,6 14,5
PTC265V25 9,0 0,6 12,5
PTC265V70 6,5 0,6 10,0
PTC265V150 4,0 0,5 7,5
