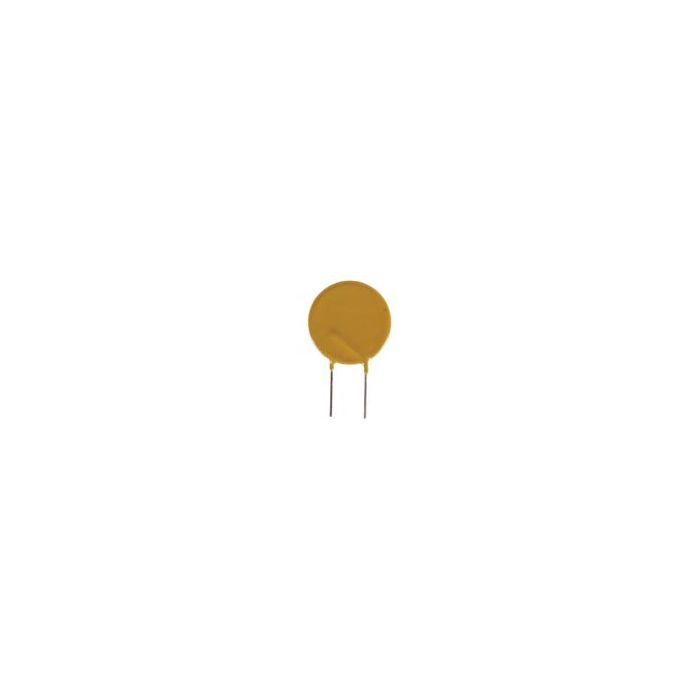

MULTIFUSE 60V IHOUD 1.35A - ISCHAKEL 2.70A 10 STUKS
€ 5,00
€ 4,13
Artikelnummer
PSWRX135
- ArtikelnummerPSWRX135
- MerkBrand
- Aantal 5+ € 4,49 € 3,71
De PTC weerstand wordt automatisch gereset en beschermt uw schakeling doorlopend.
Kenmerken
lage houdstroom
solid state
radiale aansluitingen
Specificaties
houdstroom Ih (A): 1.35
schakelstroom It (A): 2.70
max. schakelvertraging (bij 5 x Ih): 9.6
max. stroom Imax (A): 40
nom. spanning Vmax (Vdc): 60
typ. vermogen Pd (W): 1.70
weerstandstolerantie:
Rmin (ohm): 0.12
Rmax. (1 uur na schakeling) (ohm): 0.30
afmetingen:
A (max): 14.5
B (max): 19.6
C (typ): 5.1
D (min): 7.6
E (max): 3.1
F (typ): 1.4
werkstroom: 100mA ~ 3.75mA
max. stroom: 40A
max. spanning: 60V
temperatuurbereik: -40°C tot +85°C
materialen:
aansluitingen: vertind koper
isolatie: brandvertragend epoxy volgens richtlijn UL-94V-O
