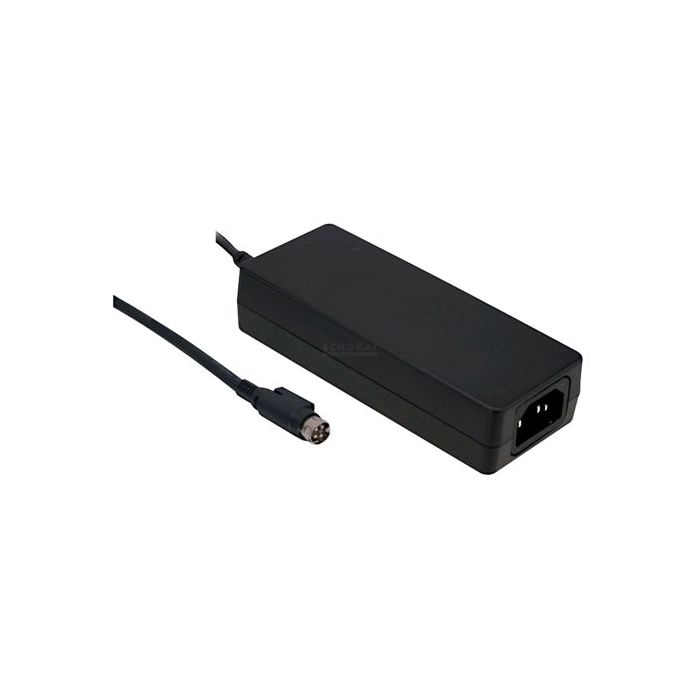

VOEDING 48V 2500MA GESCHAKELD PLUG R7B 4-POLIG
€ 52,95
€ 43,76
Artikelnummer
PSS4825
- ArtikelnummerPSS4825
- MerkMEANWELL
- Aantal 3+ € 50,30 € 41,57
Features
Desktop type
Universal input
Standby consumption <0,75W
Ultra compact design
Overload and continuous short circuit protection
High efficiency
Technical Specifications
Operating Temperature: 0...+50°C
Storage Temperature: -20...+85°C
MTBF: 308.900h/25°C
Dimensions: 167x67x35mm
Weight: 520g
Cable Length: 1,2m
Coaxial Plug, Ø2,5 Inner (+) x Ø5,5 Outer (-)
Input
Input Voltage: 90...264V AC (47...63Hz)
Conducted Interference: EN 55022 (B), FCC 15J (B)
EN61000-3-2,-3-3,-4-2,-4-3,-4-4,-4-5,-4-6,-4-8,-4-11
Hold-Up Time, 115V: 50ms
Inrush Current, 230V: 120A
Output Voltage, 48V
Output Voltage Tolerance 2%
Ripple & Noise, 240mV
Output Rated Current, 2.5A
DC Output Power, 120W
Efficiency, 89%
All Technical Specifications are Applicable to TU = 25°
Desktop type
Universal input
Standby consumption <0,75W
Ultra compact design
Overload and continuous short circuit protection
High efficiency
Technical Specifications
Operating Temperature: 0...+50°C
Storage Temperature: -20...+85°C
MTBF: 308.900h/25°C
Dimensions: 167x67x35mm
Weight: 520g
Cable Length: 1,2m
Coaxial Plug, Ø2,5 Inner (+) x Ø5,5 Outer (-)
Input
Input Voltage: 90...264V AC (47...63Hz)
Conducted Interference: EN 55022 (B), FCC 15J (B)
EN61000-3-2,-3-3,-4-2,-4-3,-4-4,-4-5,-4-6,-4-8,-4-11
Hold-Up Time, 115V: 50ms
Inrush Current, 230V: 120A
Output Voltage, 48V
Output Voltage Tolerance 2%
Ripple & Noise, 240mV
Output Rated Current, 2.5A
DC Output Power, 120W
Efficiency, 89%
All Technical Specifications are Applicable to TU = 25°
