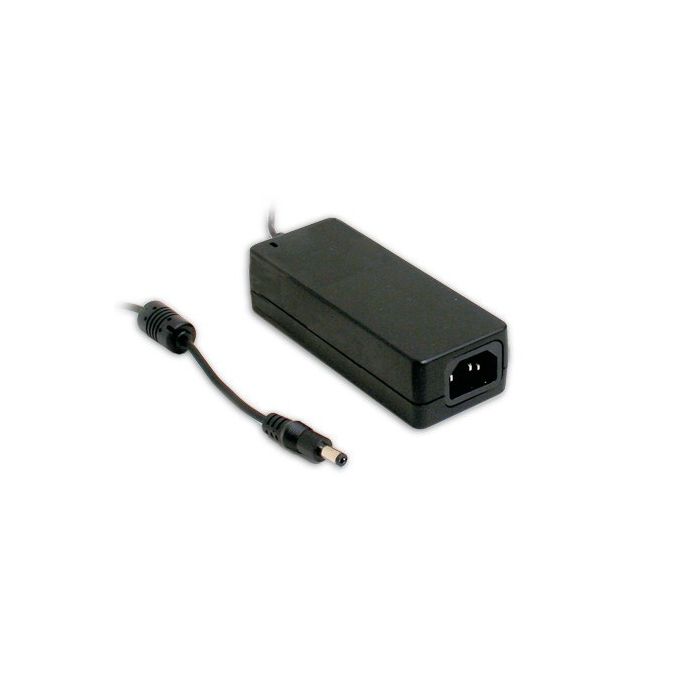

VOEDING 18V 2220MA GESCHAKELD
€ 27,50
€ 22,73
Artikelnummer
PSS1822
- ArtikelnummerPSS1822
- MerkMEANWELL
- Aantal 3+ € 26,12 € 21,59
Universal AC input / Full range
3 pole AC inlet IEC320-C14
Protections: Short circuit / Overload / Over voltage
Fully enclosed plastic case
Approvals: UL / CUL / TUV / BSMI / CCC / CB / FCC / CE
Class power ( with earth pin)
Pass LPS
LED indicator for power on
No load power consumption<0.3W
ENERGY STAR compliant
Meet EISA 2007(Energy Independence and Security Act)
Specificaties
uitgangsspanning: 18V
uitgangsstroom: 2,22A
lastregulatie: ± 3%
rimpel: 150mVp-p
nauwkeurigheid spanning: ± 3%
lijnregulatie: ± 1%
kenmerken ingang:
spanning: 90 - 264Vac
frequentie: 47 tot 63Hz
inschakelstroom: 65A max. @ 230Vac
lekstroom: 0.75mA/240VAC
kenmerken uitgang:
beveiliging tegen kortsluiting: doorlopend
werktemperatuur: 0°C tot +40°C
kabellengte: 1,2m
connector: 2.1x5.5mm
afmetingen: 125 x 50 x 31.5mm
