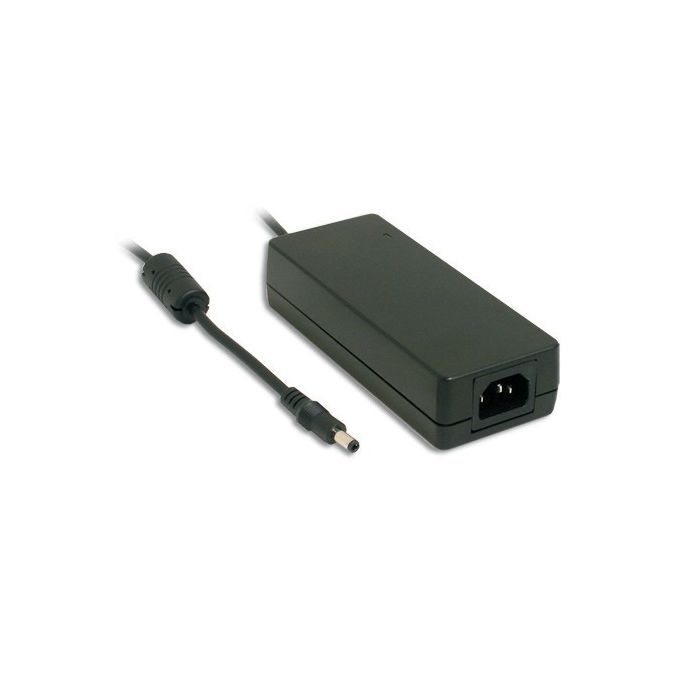

VOEDING 15V 6000MA GESCHAKELD
€ 39,95
€ 33,02
Artikelnummer
PSS1560
- ArtikelnummerPSS1560
- MerkMEANWELL
- Aantal 3+ € 37,95 € 31,36
Universal AC input / Full range
3 pole AC inlet IEC320-C14
Protections: Short circuit / Overload / Over voltage / Over temperature
Fully enclosed plastic case
Approvals: UL / CUL / TUV / BSMI / CCC / CB / FCC / CE
Class power ( with earth pin)
Pass LPS
LED indicator for power on
No load power consumption<0.5W
ENERGY STAR compliant
Meet EISA 2007(Energy Independence and Security Act)
Built-in active PFC function, PF>0.91
Specificaties
uitgangsspanning: 15V
uitgangsstroom: 6A
lastregulatie: ± 5%
rimpel: 100mVp-p
nauwkeurigheid spanning: ± 5%
lijnregulatie: ± 1%
kenmerken ingang:
spanning: 90 - 264Vac
frequentie: 47 tot 63Hz
inschakelstroom: 70A max. / 230Vac
lekstroom: 1mA/240VAC
kenmerken uitgang:
beveiliging tegen kortsluiting: doorlopend
werktemperatuur: 0°C tot +40°C
kabellengte: 1,2m
connector: 2.1x5.5mm
afmetingen: 145 x 60 x 32mm
3 pole AC inlet IEC320-C14
Protections: Short circuit / Overload / Over voltage / Over temperature
Fully enclosed plastic case
Approvals: UL / CUL / TUV / BSMI / CCC / CB / FCC / CE
Class power ( with earth pin)
Pass LPS
LED indicator for power on
No load power consumption<0.5W
ENERGY STAR compliant
Meet EISA 2007(Energy Independence and Security Act)
Built-in active PFC function, PF>0.91
Specificaties
uitgangsspanning: 15V
uitgangsstroom: 6A
lastregulatie: ± 5%
rimpel: 100mVp-p
nauwkeurigheid spanning: ± 5%
lijnregulatie: ± 1%
kenmerken ingang:
spanning: 90 - 264Vac
frequentie: 47 tot 63Hz
inschakelstroom: 70A max. / 230Vac
lekstroom: 1mA/240VAC
kenmerken uitgang:
beveiliging tegen kortsluiting: doorlopend
werktemperatuur: 0°C tot +40°C
kabellengte: 1,2m
connector: 2.1x5.5mm
afmetingen: 145 x 60 x 32mm
