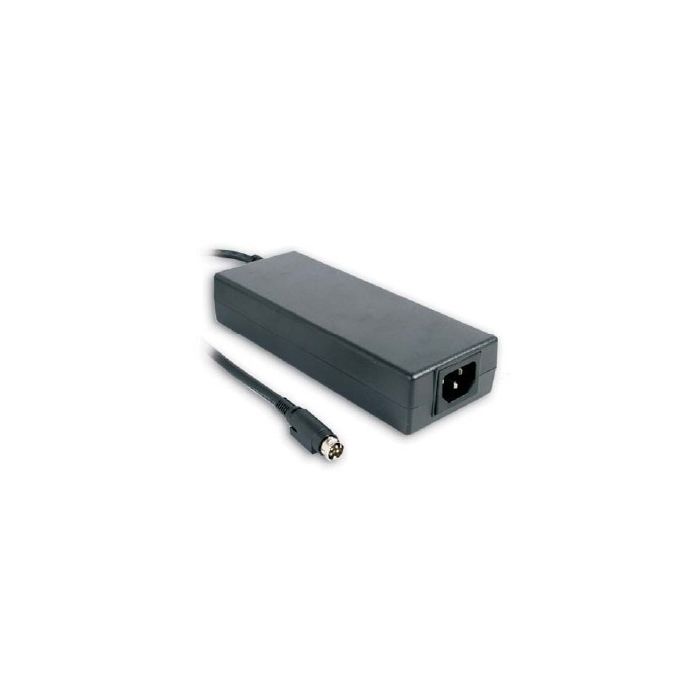

VOEDING 12V 8400MA GESCHAKELD 4P POLIGE PLUG

Features
• Desktop type
• Universal input
• Standby consumption <0,75W
• Ultra compact design
• Overload and continuous short circuit protection
• High efficiency

Technical Specifications
Operating Temperature: 0...+50°C
Storage Temperature: -20...+85°C
MTBF: 308.900h/25°C
Dimensions: 167x67x35mm
Weight: 520g
Cable Length: 1,2m
Plug: Mini DIN Plug, Pin 1,4 (+), Pin 2,3 (-)

Input
Input Voltage: 90...264V AC (47...63Hz)
Conducted Interference: EN 55022 (B), FCC 15J (B)
EN61000-3-2,-3-3,-4-2,-4-3,-4-4,-4-5,-4-6,-4-8,-4-11
Hold-Up Time, 115V: 50ms
Inrush Current, 230V: 120A

Output Voltage, 12V
Output Voltage Tolerance 4%
Ripple & Noise, 100mV
Output Rated Current, 8.4A
DC Output Power, 100W
Efficiency, 85%
All Technical Specifications are Applicable to TU = 25°
