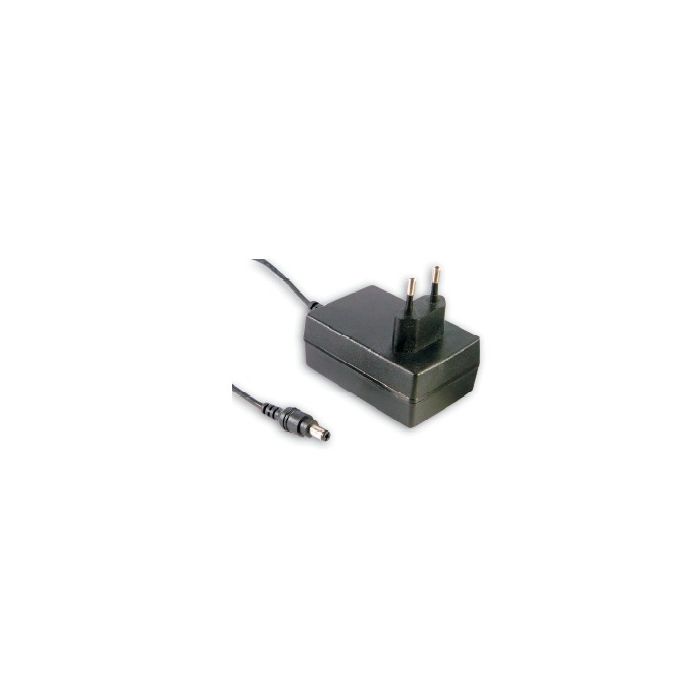

ADAPTER 12V 2080MA GESCHAKELD
€ 20,95
€ 17,31
Artikelnummer
PSS1220
- ArtikelnummerPSS1220
- MerkMEANWELL
- Aantal 3+ € 18,84 € 15,57
Features
Plug-in switching power supply
Universal AC input
Class II power (without earth pin)
Compact design
Overload and short circuit protection
LED for power on
Technical Specifications
Operating Temperature: 0...+50°C
torage Temperature: -20...+85°C
MTBF: 500.000h/25°C
Dimensions: 79x54x33mm
Weight: 220g
Cable Length: 1,8m
Plug: Coaxial Plug
Ø2,1 inner(+) x Ø5,5 outer(-)
Input
Input Voltage: 90...264V AC (47...63Hz)
Conducted Inteference: EN 55022 (B), FCC 15 (B)
EN61000-3-2,-3-3,-4-2,-4-3,-4-4,-4-5,-4-6,-4-8,-4-11
Hold Up Time, 115V: 16ms
In-Rush Current 230V: 40A
Output Voltage, 12V
Output Voltage Tolerance 3%
Ripple & Noise, 80mV
Output Rated Current, 2.08A
DC Output Power, 25W
Efficiency, 76%
All Technical Specifications are Applicable to TU = 25°
