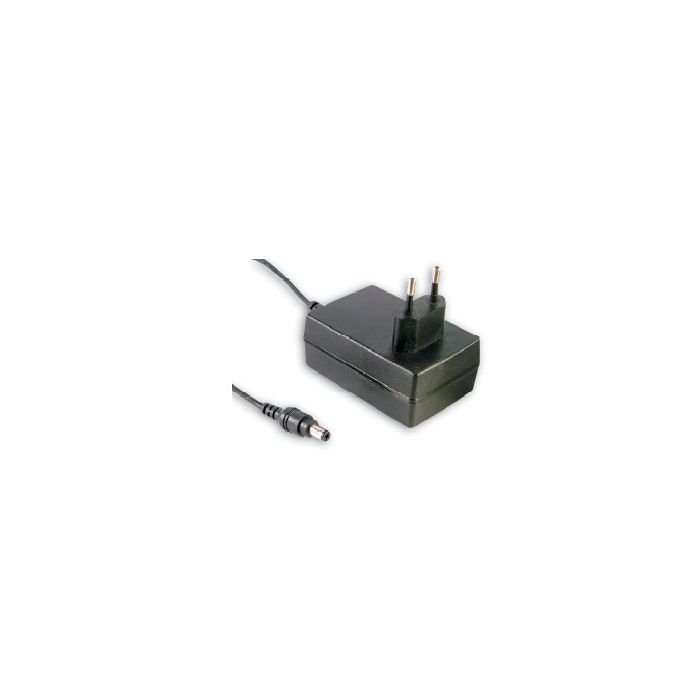

ADAPTER 5V 4000MA GESCHAKELD

Features

• Plug-in switching power supply
• Universal AC input
• Class II power (without earth pin)
• Compact design
• Overload and short circuit protection
• LED for power on


Technical Specifications
Operating Temperature: 0...+50°C
torage Temperature: -20...+85°C
MTBF: 500.000h/25°C
Dimensions: 79x54x33mm
Weight: 220g
Cable Length: 1,8m
Plug: Coaxial Plug
Ø2,1 inner(+) x Ø5,5 outer(-)


Input
Input Voltage: 90...264V AC (47...63Hz)
Conducted Inteference: EN 55022 (B), FCC 15 (B)
EN61000-3-2,-3-3,-4-2,-4-3,-4-4,-4-5,-4-6,-4-8,-4-11
Hold Up Time, 115V: 16ms
In-Rush Current 230V: 40A

Output Voltage, 5V
Output Voltage Tolerance 5%
Ripple & Noise, 50mV
Output Rated Current, 4A
DC Output Power, 20W
Efficiency, 70%
All Technical Specifications are Applicable to TU = 25°
