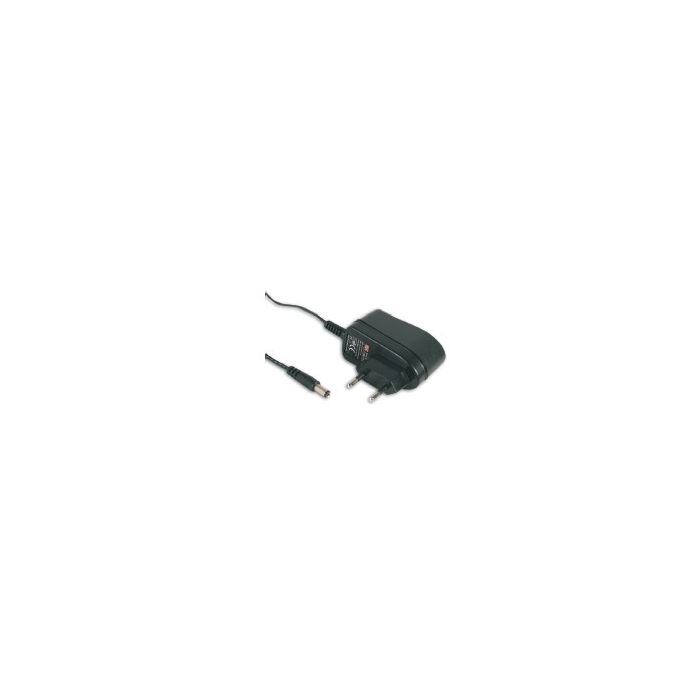

ADAPTER 5V 1000MA GESCHAKELD
€ 11,25
€ 9,30
Artikelnummer
PSS0510
- ArtikelnummerPSS0510
- MerkBrand
- Aantal 3+ € 10,13 € 8,37
Features
Plug-in switching power supply
Universal AC input
Class II power (without earth pin)
Compact design
Overload and short circuit protection
Technical Specifications
Operating Temperature: 0...+40°C
Storage Temperature: -20...+85°C
MTBF: 50.000h/25°C
Dimensions: 32x66x42,5mm
Weight: 100g
Cable Length: 1,8m
Plug: Coaxial Plug
Ø2,1 inner(+) x Ø5,5 outer(-)
Input
Input Voltage: 90...264V AC (47...63Hz)
Conducted Interference: EN 55022 (B)
EN61000-3-2,-3-3,-4-2,-4-3,-4-4,-4-5,-4-6,-4-8,-4-11
Hold Up Time, 115V: 16ms
In-Rush Current 230V: 30A
Output Voltage, 5V
Output Voltage Tolerance 5%
Ripple & Noise, 50mV
Output Rated Current, 1A
DC Output Power, 5W
Efficiency, 70%
All Technical Specifications are Applicable to TU = 25°
