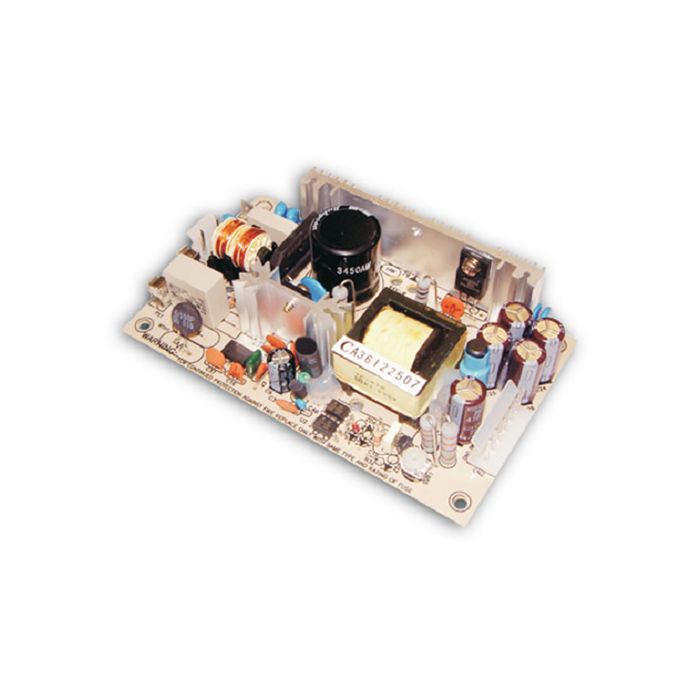

GESCHAKELDE VOEDING SINGLE OUTPUT 48W 48V/1.0A

Universal AC input / Full range
Low leakage current <0.5mA
Protections: Short circuit/Over load /Over voltage
Cooling by free air convection
100% full load burn-in test
Fixed switching frequency at 65KHz


OUTPUT:
DC VOLTAGE: 48V
CURRENT: 1.0A
VOLTAGE TOLERANCE +/-2.0%

INPUTS
AC VOLTAGE: 90-264V

DIMENSION: 127*76*28mm (L*W*H)
