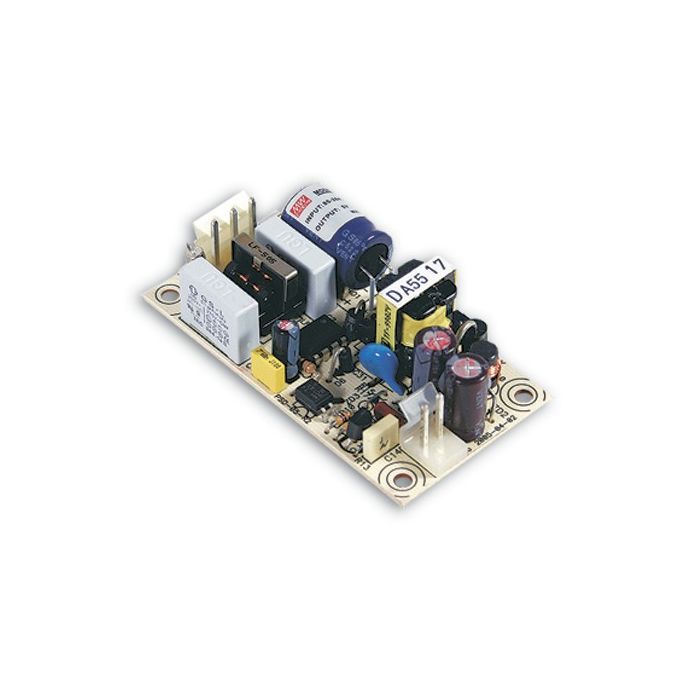

GESCHAKELDE VOEDING SINGLE OUTPUT 5.4W 12V/0.45A
€ 9,95
€ 8,22
Artikelnummer
PS0512
- ArtikelnummerPS0512
- MerkMEANWELL
- Aantal 3+ € 9,44 € 7,80
Universal AC input / Full range
Low leakage current <0.5mA
Protections: Short circuit/Over load /Over voltage/Over temperature
Cooling by free air convection
100% full load burn-in test
Fix switching frequency at 67KHz
Low cost
High reliability
OUTPUT:
DC VOLTAGE: 12V
CURRENT: 0,45A
VOLTAGE TOLERANCE +/-2.0%
INPUTS
AC VOLTAGE: 85-264V
DIMENSION: 75*40*20mm (L*W*H)
Low leakage current <0.5mA
Protections: Short circuit/Over load /Over voltage/Over temperature
Cooling by free air convection
100% full load burn-in test
Fix switching frequency at 67KHz
Low cost
High reliability
OUTPUT:
DC VOLTAGE: 12V
CURRENT: 0,45A
VOLTAGE TOLERANCE +/-2.0%
INPUTS
AC VOLTAGE: 85-264V
DIMENSION: 75*40*20mm (L*W*H)
