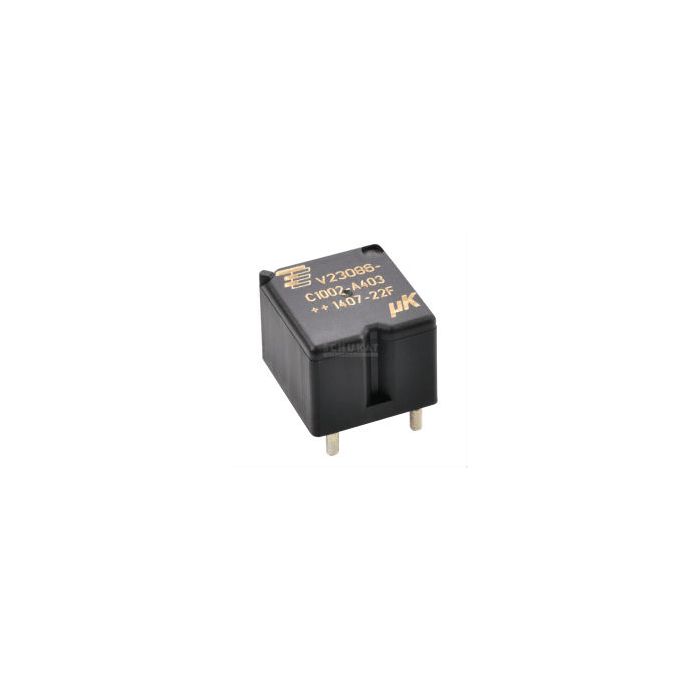

PRINTRELAIS 1XOM 12VDC 254 OHM SCHAKELVERMOGEN 30A/230VAC PRINT
€ 4,50
€ 3,72
Artikelnummer
R012D1WYA
- ArtikelnummerR012D1WYA
- MerkTE
- Aantal 5+ € 4,04 € 3,34
| Technical Specifications |
 |
|
| Contact | |
| V23086C10011402, _2A403: | SPST-NO |
| V23086C1001A403, _2A803: | SPDT |
| Contact Material: | AgNiSO2 |
| Rated Current: | 30A |
| Rated Voltage: | 250V AC |
| Max. Switching Voltage: | 400V AC |
| Max. Switching Power: | 2000VA |
| Creepage/Clearance: | 8/8mm |
| Operate/Release Time: | 3/1,5ms |
| Testing Voltage | |
| Coil/Contact: | 500Vrms |
| Opening Contact: | 500Vrms |
| Lifetime | |
| Mechanical: | 5x106 Operations |
| Electrical: | see Datasheet |
| Operating Temperature: | -40...+105°C |
| Weight Approx.: | 4g |
|
|
| Coil Data |
| Part Nr. | UN | UAn | UAb | PN | RN |
| [V DC] | [V] | [V] | [mW] | [Ohm] | |
| V23086C1001A402 | 12 | 6,9 | 1,5 | 567 | 254 |
| UN = Rated Voltage, UAn = Operate Voltage, UAb = Release Voltage, PN = Rated Power, RN = Coil Resistance; All Specifications Measured at 23°C | |||||
