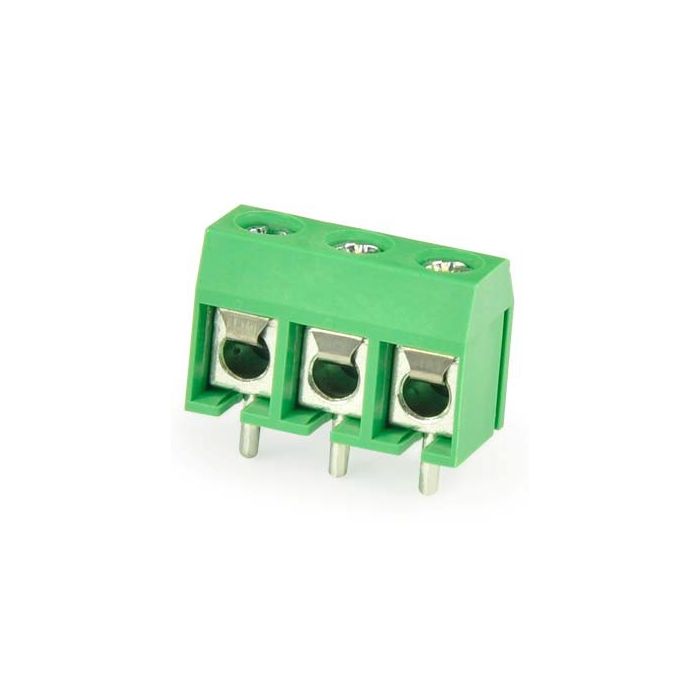

PRINTKROONSTEEN 3P 250V/16A RASTER 5.08MM

FEATURES
Easy to assemble for any number of positions
End stackable without any loss of P.C.B. space
Special wire protector design to ensure reliable wire clamping
UL 94V-0 grade fire retardant engineering plastic used for the housing
Be capable of clamping a wide range of wire diameters
Compact size for P.C.B.

■ SPECIFICATIONS
Pitch 5.08mm, 10.16mm
Wire range 24~14 AWG (2.5mm²)
No. of pole per block 2P or 3P
Rating 16 Amp, 300 VAC
Housing PA66
Terminals Tin plated over Zinc Alloy
Screws M2.6x0.45P, Zinc plated over Steel
Wire protector Stainless Steel
Torque 0.25 N-m (2.18 lb-in) (tested by
manual torque screwdriver)
Operating temperature -30℃~+110℃
(includes temperature rise limit)
Stripping length 6mm
UL Approval 300V, 16A, 24~14 AWG
