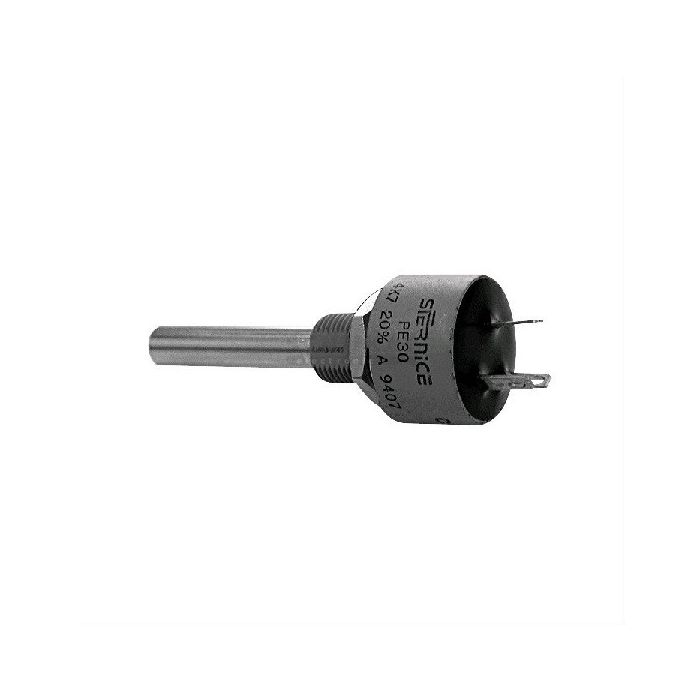

POTMETER MONO LIN 6MM AS 10K 3W IP67
€ 29,95
€ 24,75
Artikelnummer
K010PE
- ArtikelnummerK010PE
- MerkVISHAY
- Aantal 5+ € 26,95 € 22,27
Features
| • High performance • Low temperature coefficient • Excellent stability • Completely sealed • High mechanical strength |
 |
| Technical Specifications |
|
|
| Power Rating (TU = 70°C): | 3W |
| Hold-off Voltage: | 300V |
| Dielectric Strength (RMS): | 2500V |
| Insulation Resistance: | 105MOhm |
| Standard Tolerance: | ±20% |
| Resistive Element: | Cermet |
| End Resistance (Typ.): | 1Ohm |
| Rotation Angle | |
| Mechanical: | 300° ±5° |
| Electrical: | 270° ±10° |
| Operating Torque, Max.: | 3Ncm |
| Stop End Torque, Max.: | 120Ncm |
| Temperature Range: | -55...+125°C |
| Temperature Coefficient (Typ.): | ±150ppm/°C |
| Climatic Category: | 55/125/56 |
| Sealing: | IP67 |
|
|
| Part Nr. | R | PMax. | UMax. | IMax. |
| Ohm | [W] | [V] | [mA] | |
| K001PE | 1K | 3,0 | 54,8 | 54 |
| K005PE | 4,7K | 3,0 | 119,9 | 25 |
| K010PE | 10K | 3,0 | 173 | 17 |
| K047PE | 47K | 1,91 | 300 | 6,3 |
| K100PE | 100K | 0,9 | 300 | 3,0 |
| R = Resistance, PMax. = Power, Max. (+70°C), UMax. = Operating Voltage, Max., IMax. = Transmission Current, Max. | ||||
|
||||
| Norms |
| CECC41000 |
