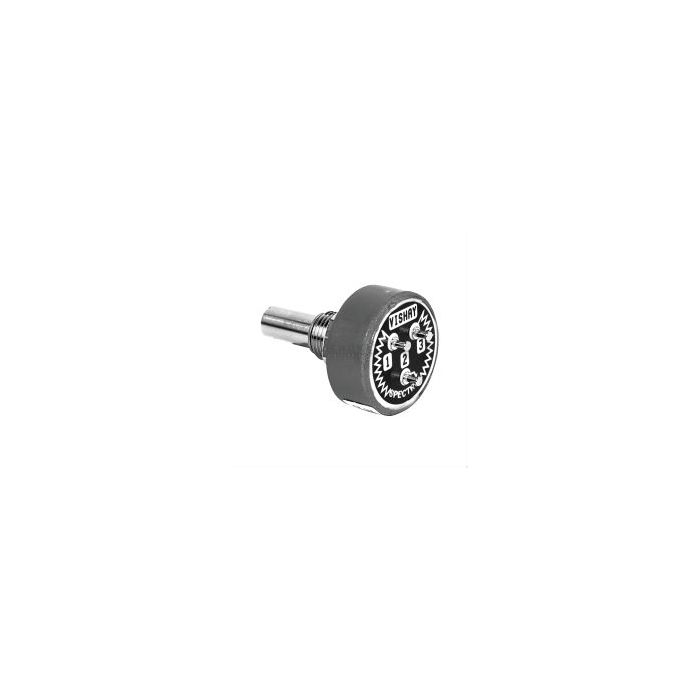

POTMETER MONO LIN 5K 1W 6.35MM AS
€ 27,95
€ 23,10
Artikelnummer
K005P357
- ArtikelnummerK005P357
- MerkVISHAY
- Aantal 5+ € 25,16 € 20,79
Technical Specifications
 |
|
| Power Rating (TU = 70°C): | 1W |
| Dielectric Strength (RMS): | 1000V |
| Insulation Resistance: (500V DC): | 1000MOhm |
| Standard Tolerance: | ±20% |
| Resistive Element: | Conductive Plastic |
| End Resistance (Typ.): | 0,5% from Final Value |
| Rotation Angle | |
| Mechanical: | 360° continuous |
| Electrical: | 340° ±3° |
| Operating Torque, Max.: | 3,68mNm |
| Temperature Range: | -55...+125°C |
| Weight: | 17,5g |
|
|
