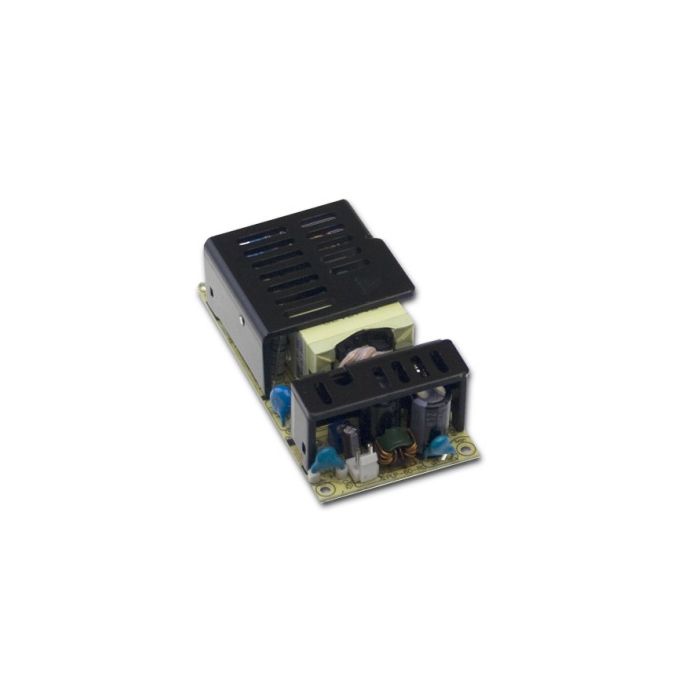

LED VOEDING 48V/0,95A 45W OPEN FRAME
€ 24,95
€ 20,62
Artikelnummer
PLP4548
- ArtikelnummerPLP4548
- MerkMEANWELL
- Aantal 3+ € 23,69 € 19,58
Universal AC input / Full range
Protections: Short circuit / Over current / Over voltage
Built-in active PFC function
Cooling by free air convection
Class 2 power unit
Output current level adjustable
100% full load burn-in test
High reliability
Suitable for built-in applications of LED lighting
Uitgang
dc spanning : 48V
Stroom (max.) : 0.95A
Vermogen : : 45W
Ripple & Noise (max.) : 4.8Vp-p
Spanning instelbaar : 36 ~ 48V
Ingang spanning : 90 ~ 264VAC 127 ~ 373VDC
Frequentie : 47 ~ 63Hz
Protections: Short circuit / Over current / Over voltage
Built-in active PFC function
Cooling by free air convection
Class 2 power unit
Output current level adjustable
100% full load burn-in test
High reliability
Suitable for built-in applications of LED lighting
Uitgang
dc spanning : 48V
Stroom (max.) : 0.95A
Vermogen : : 45W
Ripple & Noise (max.) : 4.8Vp-p
Spanning instelbaar : 36 ~ 48V
Ingang spanning : 90 ~ 264VAC 127 ~ 373VDC
Frequentie : 47 ~ 63Hz
