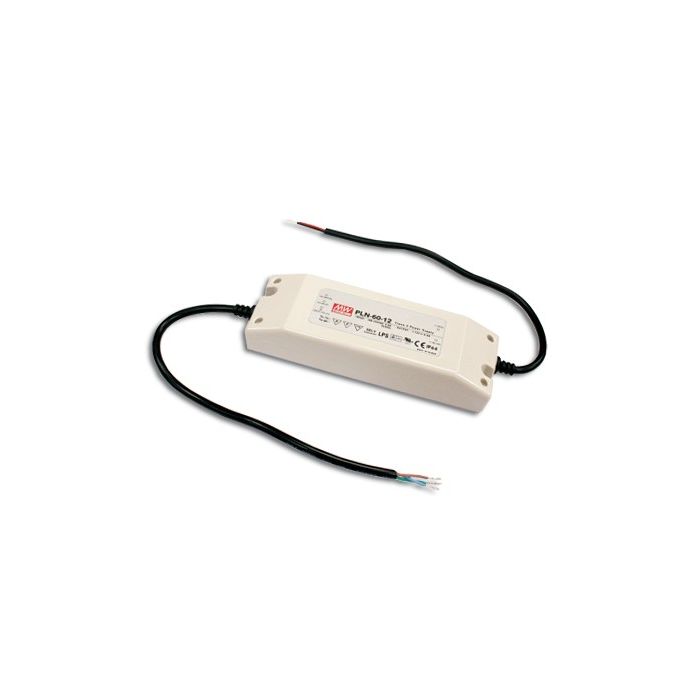

LED VOEDING 48V/1.30A 62W MET ACTIVE PFC IN IP64 BEHUIZING

Features
• Universal input
• Overload protection, current limiting, auto recovery
• Protections: short circuit/over load/over voltage
• IP64, for indoor and outdoor installations
• Suitable for LED lighting and moving sign applications
• UL1310 Class 2
• Fixed output voltage

Input Voltage: 90...264V AC (47...63Hz)
127...370V DC
Input Inrush Current, Max.: 40A
Over Load Protection: 130%
Withstand Voltage (I/P-O/P): 4250V AC
I/P = Input, O/P = Output
Operating Temperature: -30...+50°C
Weight: 500g
Dimensons 181x61.5x35mm (LxWXH)

Output Voltage: 48Vdc
Output Current Range: 0 - 1,30A
Output Power: 62W
Output Voltage Tolerance: 10%
Ripple & Noise: 4,6Vp-p
Typ. Efficiency: 88%
