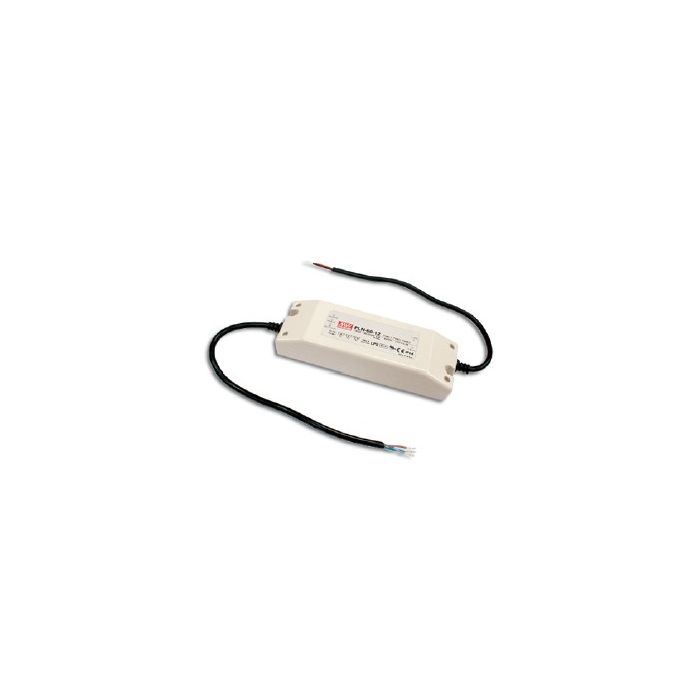

LED VOEDING 27V/1.12A 30W MET ACTIVE PFC IN IP64 BEHUIZING
€ 34,94
€ 28,88
Artikelnummer
PLN3027
- ArtikelnummerPLN3027
- MerkMEANWELL
- Aantal 3+ € 33,19 € 27,43
Features
Universal input
Overload protection, current limiting, auto recovery
Protections: short circuit/over load/over voltage
IP64, for indoor and outdoor installations
Suitable for LED lighting and moving sign applications
Fixed output voltage
Input Voltage: 90...264V AC (47...63Hz)
Input Inrush Current, Max.: 40A
Over Load Protection: 1100....120%
Withstand Voltage (I/P-O/P): 3000V AC
I/P = Input, O/P = Output
Operating Temperature: -30...+50°C
Weight: 220g
Dimensons 181x61.5x35mm (LxWXH)
Output Voltage:27Vdc
Output Current Range: 0 - 1,12A
Output Power: 30,24W
Output Voltage Tolerance: 10%
Ripple & Noise: 2,3Vp-p
Typ. Efficiency: 85%
Universal input
Overload protection, current limiting, auto recovery
Protections: short circuit/over load/over voltage
IP64, for indoor and outdoor installations
Suitable for LED lighting and moving sign applications
Fixed output voltage
Input Voltage: 90...264V AC (47...63Hz)
Input Inrush Current, Max.: 40A
Over Load Protection: 1100....120%
Withstand Voltage (I/P-O/P): 3000V AC
I/P = Input, O/P = Output
Operating Temperature: -30...+50°C
Weight: 220g
Dimensons 181x61.5x35mm (LxWXH)
Output Voltage:27Vdc
Output Current Range: 0 - 1,12A
Output Power: 30,24W
Output Voltage Tolerance: 10%
Ripple & Noise: 2,3Vp-p
Typ. Efficiency: 85%
